Comprehensive Guide to Zircon Processing

ShirleyShirley Jul 31, 2023Jul 31, 2023 594594
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

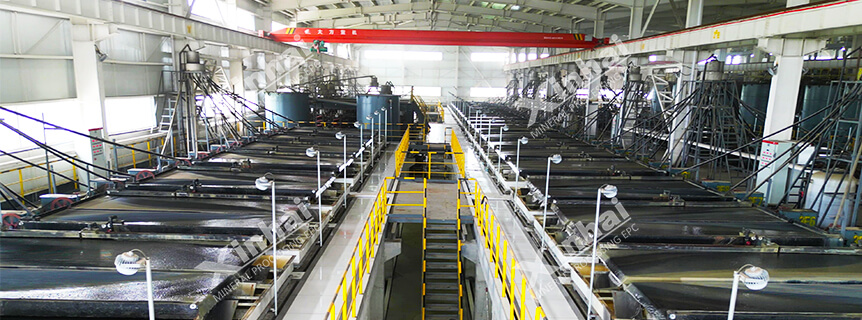

shaking table for Zircon processing.jpg

Zircon, a naturally occurring mineral, plays a crucial role in numerous industries due to its unique properties. This guide aims to provide an in-depth understanding of zircon processing, from its extraction to its application in various sectors.

01What is Zircon?

Back

Zirconium silicate, commonly known as zircon, is a mineral belonging to the group of nesosilicates. It comes in a variety of colors, including yellow, green, red, and brown, but it is most commonly found in its colorless form. Zircon is highly resistant to weathering and erosion, making it a valuable source of sand deposits worldwide.

02Zircon Mining and Extraction

Back

Zircon is typically extracted from heavy mineral sand deposits. These deposits are formed over millions of years from the erosion of crystalline igneous and metamorphic rocks. The sand is mined from these deposits using traditional open-pit mining techniques.

The mining process begins with removing overburden, the layer of soil and rock overlying the mineral deposit. Once the overburden is removed, the heavy mineral sand is extracted and transported to a processing plant.

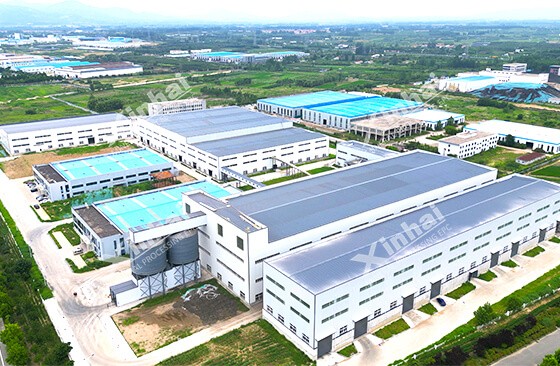

2000 tpd Zircon processing plant in China.jpg

03Concentration Process

Back

At the processing plant, the sand undergoes a series of concentration procedures to separate the heavy minerals from the lighter minerals.

The process usually involves:

1. Wet Gravity Concentration: This process separates the heavy minerals based on their specific gravity. The sand is mixed with water to create a slurry, which is then passed through spiral concentrators. The heavier minerals, including zircon, sink to the bottom and are collected.

2. Magnetic Separation: The concentrated heavy minerals are passed through magnetic separators to remove magnetic minerals like ilmenite.

3. Electrostatic Separation: This process uses the differences in conductivity between minerals to separate non-conductive minerals like zircon from conductive minerals.

After these processes, the zircon is typically dried and stored for further processing.

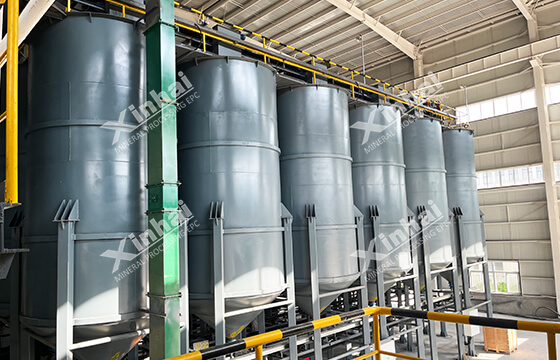

Zircon processing plant.jpg

04Zircon Refining

Back

Refining zircon involves removing impurities and separating the zircon from other heavy minerals. This is usually achieved through a flotation process, where chemicals are used to alter the mineral's surface properties. The zircon can then be separated from the other minerals using froth flotation.

Once the zircon has been refined, it is often converted into zirconia (zirconium dioxide) or zirconium metal. Both of these products have a wide range of uses in various industries.

05Applications of Zircon

Back

Zircon and its derivatives have a wide range of applications due to their unique properties:

Ceramics: Zirconia is used to produce ceramics, including ceramic tiles and sanitaryware. It enhances the ceramics’ durability and heat resistance.

Refractories and Foundries: Zircon and zirconia are used in the production of refractory bricks and foundry sands due to their high melting point and resistance to chemical attack.

Nuclear Industry: Zirconium metal is used in the nuclear industry due to its low neutron absorption.

Jewelry: Zircon gemstones are used in jewelry for their brilliance and various colors.

06To Wrap Up

Back

In conclusion, zircon processing is a complex but vital process for various industries. The high demand for zircon and its derivatives in multiple applications underscores the need for efficient and sustainable processing techniques.
