What Equipment is Used for Aluminum Extraction?

300tpd-aluminum-ore-processing-plant

The exact equipment used depends heavily on the characteristics of the bauxite. Clay-rich ores may require intensive washing and desliming, while relatively clean and coarse-grained ores may only need crushing and screening. In some deposits, gravity or magnetic separation can also be introduced to remove specific impurities.

This article introduces the main aluminum extraction equipment used in bauxite processing, explains what each machine does, and discusses how to select equipment according to ore properties and processing requirements.

Different bauxite types require different processing strategies.

1.1 Clay-Rich Bauxite

A typical approach may emphasize:

Crushing → Scrubbing/Washing → Screening → Desliming

The objective is to remove clay and fine impurities while retaining valuable coarse bauxite particles.

1.2 Coarse and Relatively Clean Bauxite

If the ore is already relatively high grade and contains limited clay, a simpler circuit may be sufficient:

Crushing → Screening → Product

In such cases, adding grinding or complex separation equipment may unnecessarily increase capital and operating costs.

1.3 Fine-Grained Bauxite

Fine-grained ore may require:

Grinding → Classification → Appropriate Separation

The actual process depends on the liberation characteristics and mineral association.

1.4 Bauxite with High Iron Impurities

When iron-bearing minerals are sufficiently magnetic, a magnetic separation stage may be considered.

However, the specific magnetic separation intensity and equipment type should be determined through beneficiation testing.

There is no universal equipment configuration for all bauxite ores. A typical bauxite processing circuit may include several of the following machines:

·        Jaw Crusher – primary size reduction: used for primary crushing because it can handle relatively large and hard feed materials. It is suitable for reducing run-of-mine bauxite to a manageable size for subsequent processing.

·        Cone Crusher or Impact Crusher – secondary crushing: Equipment selection should consider: Feed particle size; Bauxite hardness; Required product size; Processing capacity; Moisture and clay content.

·        Vibrating Screen – particle-size separation: For bauxite processing, the choice between vibrating screens and trommel screens depends largely on moisture, clay content, particle size, and the required washing intensity.

·        Trommel Scrubber – washing and breaking down clayey material: The rotating drum agitates the ore and helps break down clay coatings and soft agglomerates.

·        Ball Mill – fine grinding when additional liberation is required: The grinding fineness should be optimized through laboratory testing. Overgrinding can produce excessive slimes, increase energy consumption, and make subsequent separation more difficult.

·        Hydrocyclone – classification and desliming: Removing excessive fine slimes can improve the performance of downstream beneficiation processes, especially when the slime fraction contains a high proportion of clay and impurities.

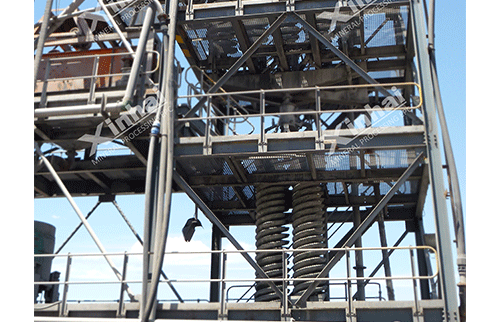

·        Shaking Table or Spiral Chute – gravity separation under suitable mineralogical conditions: a sufficient density difference between aluminum-bearing minerals and associated gangue minerals.

·        Magnetic Separator – removal of magnetic iron-bearing impurities: magnetic separation should be used to solve a specific mineralogical problem rather than added simply because the ore contains iron.

·        Thickener and Filter Press – concentrate and process-water dewatering: Dewatering reduces moisture, recovers process water, and makes the final product easier to handle and transport.

However, these machines are not necessarily used together. The most economical plant is usually the one that includes only the equipment required by the actual ore characteristics.

The correct equipment should be selected based on the ore characteristics and processing objective, rather than simply choosing the largest-capacity machine available. Several factors should be evaluated before equipment selection.

3.1 Bauxite Mineralogy

Mineralogical analysis determines which aluminum-bearing minerals are present and how they are associated with clay, iron minerals, silica, and other gangue. This information determines whether the plant should focus on crushing and screening, washing, grinding, or additional separation.

3.2 Al₂O₃ Grade

The aluminum oxide content provides an important indication of ore quality. However, Al₂O₃ grade alone is not sufficient to determine the beneficiation process. Other chemical and mineralogical parameters must also be considered.

3.3 Reactive Silica Content

Reactive silica is an important consideration in bauxite processing because it can influence the efficiency and economics of downstream alumina refining. Therefore, a beneficiation process may aim not only to increase Al₂O₃ content but also to reduce undesirable silica-bearing components where technically and economically feasible.

3.4 Clay and Moisture Content

High clay content can make crushing and screening more difficult and often increases the importance of washing and desliming. For highly clayey bauxite, a scrubber or log washer may be more appropriate than relying solely on conventional crushing and screening.

3.5 Feed Size and Processing Capacity

Equipment capacity must match the required plant throughput. For example, a 500 TPD plant and a 50,000 TPD operation have fundamentally different equipment requirements, layouts, power demands, and material-handling systems.

The equipment used for aluminum extraction depends largely on the characteristics of the bauxite being processed. Crushers and screens provide basic size reduction and classification, while scrubbers and washing equipment are particularly important for clay-rich ores. Depending on mineral liberation and impurity characteristics, grinding, classification, gravity separation, or magnetic separation may also be incorporated.

The key is not to build the most complicated processing circuit, but to select the simplest equipment combination capable of achieving the required product quality and recovery.

For a new bauxite processing project, the recommended approach is to start with mineralogical analysis, laboratory beneficiation tests, and process design, then determine the appropriate equipment based on ore characteristics, processing capacity, recovery targets, and investment requirements.
