Procurement Guide for Chromite Ore Dressing Equipment

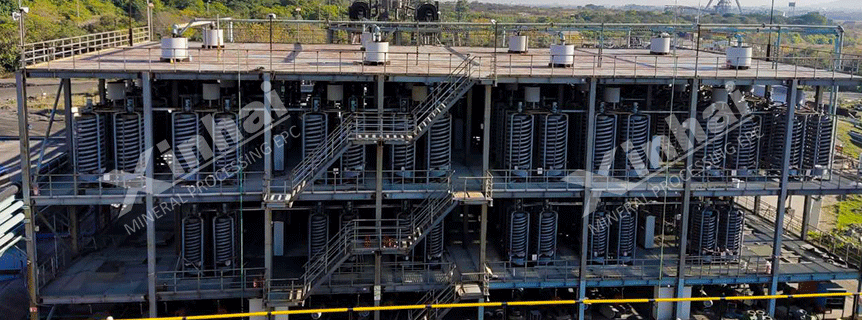

South-Africa-3000-tpd-Chromite-Ore-Flotation-Plant

Chromite ore dressing equipment constitutes the core machinery for the dissociation, separation and upgrading of chromite ore. Equipment model selection directly determines the grade of chromite concentrate, chromium metal recovery rate and long-term operating costs of mineral processing plants. Targeted at mine investors, mineral processing engineers and mine EPC general contractors, this practical procurement guide systematically sorts out formal procurement channels and core evaluation criteria for chromite ore dressing equipment.

Chromite ore features high hardness and strong abrasiveness, and often coexists with gangue minerals including serpentine, olivine and magnetite. A complete mineral processing flow consists of five procedures: crushing & screening, grinding & classification, separation & purification, dewatering & dry stacking, and tailings disposal. Specialized equipment supporting each procedure forms an integrated mineral processing production line.

1. Core Equipment Divided by Processing Flow

(1) Crushing & Screening Equipment

• Jaw crushers, spring cone crushers, circular vibrating screens and feeders are adopted for primary and secondary crushing of lump raw chromite ore to control feeding particle size for grinding, ensuring stable material supply for subsequent grinding and separation processes.

(2) Grinding & Classification Equipment

• Energy-saving ball mills, rod mills, spiral classifiers and hydrocyclones realize monomer dissociation of chromite grains. Customized wear-resistant alloy liners are equipped to cope with the severe abrasion of chromite ore, greatly extending the service life of equipment.

2. Core Mainstream Separation Equipment

(1) Gravity Separation Equipment

• Spiral chutes, jigs, shaking tables and centrifugal separators are applicable to separation of coarse and medium-grained chromite ore. Characterized by low operation cost and zero chemical reagent consumption throughout the process, gravity separation represents the dominant technology for chromite ore beneficiation.

(2) Magnetic Separation Equipment

• High-intensity magnetic separators and low-intensity iron-removal magnetic separators are used for deep purification of rough concentrates from gravity separation, elevating Cr₂O₃ grade of concentrates, optimizing chromium-iron ratio and meeting the quality standards of metallurgical-grade chromite concentrate

3. Auxiliary Supporting & Tailings Treatment Equipment

Thickeners, plate-and-frame filter presses, belt conveyors, mixing tanks and full-automatic electric control cabinets facilitate dewatering of chromite concentrates, solid-liquid separation of tailings and automatic linkage operation of the whole production line.

Gravity separation serves as the principal separation method for chromite ore processing, and raw materials impose intense abrasion on machinery. Thus, equipment procurement shall not follow the model selection logic for general non-ferrous metal ores. Combined with ore samples and on-site actual conditions, five major dimensions shall be prioritized for evaluation:

1. Equipment Parameters Matching Ore Properties

• Before issuing quotations, suppliers must conduct sampling assay and washability tests on raw chromite ore to confirm three core indicators:

(1) Daily processing capacity

• A 20%–50% margin shall be reserved for the rated throughput of equipment to address fluctuations in raw ore hardness and unstable ore supply.

(2) Wear-resistant configuration

• High-manganese steel and high-chromium alloy wear-resistant components shall be adopted for ball mill liners, crusher hammers and chute liners to reduce monthly replacement frequency of quick-wear parts.

(3) Ore type adaptability

• Gravity separation equipment dominates the processing of sand-type chromite ore; low-grade rock-type chromite ore requires a combined gravity-magnetic separation production line; pre-washing and desliming equipment must be added for chromite ore with high mud content.

2. Equipment Durability and Continuous Operation Stability

Severe abrasion from chromite ore drastically accelerates wear of mechanical components. Manufacturers with abundant mature on-site chromite processing cases shall be prioritized. Key verification items include the continuous trouble-free operation duration of complete machines under chromite processing conditions, actual service life of quick-wear parts, and real operational feedback of identical models deployed in domestic and overseas chromite concentrators. Stable equipment minimizes maintenance shutdowns and cuts economic losses caused by production halts over the long run.

1.Professional Mine-Metallurgy EPC Complete Equipment Manufacturers

(1) Full product portfolio covering the entire flow from crushing to dewatering, enabling one-stop supply of complete mineral processing production lines.

(2) Self-built ore assay and mineral processing laboratories to formulate exclusive equipment matching schemes for chromite ore samples from various origins.

(3) Hundreds of chromite concentrator projects delivered in major global chromite producing regions including South Africa, Zimbabwe, Madagascar and Kazakhstan, with mature after-sales service systems overseas.

(4) Turnkey EPC services available, covering process design, equipment manufacturing, on-site construction guidance and commissioning & operation maintenance.

2.Global Professional Mining & Metallurgy Exhibitions

Participate in offline events including International Mining Exhibitions, African Mining Investment Summits and China International Mining Congress. Face-to-face communication with equipment R&D engineers is available, alongside direct viewing of physical equipment and production line test-running videos.

3.Qualified Vertical Industrial B2B Platforms

• Vertical industrial procurement platforms including Miningpedia.cn, Made-in-China and Alibaba Industrial serve as convenient auxiliary procurement channels:

(1) Real-name enterprise qualification authentication is implemented on platforms to screen out small intermediaries and workshops without production workshops or processing capacity.

(2) Specialized chromite ore dressing equipment is centrally displayed, with one-click access to technical parameters, on-site mine project cases and detailed quotation packages.

(3) Online communication and verification of ore sample documents, process drawings and factory on-site videos can be completed, cutting time costs for offline factory inspections.

Procuring well-matched, high-wear-resistant dedicated chromite ore dressing equipment serves as a core prerequisite for boosting chromite recovery rate and lowering the full-cycle production costs of concentrators. Five dimensions shall be comprehensively assessed during equipment selection: ore-adapted parameters, equipment durability, flexible process customization, environmental & safety compliance, and full-lifecycle after-sales service.
