Silica Sand Washing Plant: The Key to High-Quality Sand

ShirleyShirley Jul 06, 2023Jul 06, 2023 765765
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

silica sand washing plant in site.jpg

Silica sand is an essential material used in a variety of industrial applications, including construction, glassmaking, and fracking. However, not all silica sand is created equal. The quality of the sand is determined by the purity and size of the particles, making the washing process an essential step in the production of high-quality sand products. In this article, we A silica sand washing plant is a facility designed to remove impurities and contaminants from silica sand.

01What is a Silica Sand Washing Plant?

Back

A silica sand washing plant is a facility designed to remove impurities and contaminants from silica sand. The plant uses various techniques, including scrubbing, washing, and rinsing, to remove impurities such as clay, silt, and organic matter. The result is high-quality, clean silica sand that is suitable for use in a variety of industrial applications.

02Why is Silica Sand Washing Important?

Back

The quality of silica sand is essential in many industries. For example, in the construction industry, high-quality silica sand is used to produce concrete and mortar. In fracking, silica sand is used as a proppant to hold open fractures in rock formations, allowing for the extraction of oil and gas. In glassmaking, silica sand is used to produce high-quality glass with excellent clarity and strength.

Without proper washing, silica sand may contain impurities such as clay, silt, and organic matter that can negatively impact the quality of the final product. Additionally, the size distribution of the particles is critical as it affects the strength and durability of the final product. Therefore, proper washing is essential to ensure that the silica sand meets the required specifications for each industry.

03What are Silica Sand Washing Techniques?

Back

There are several techniques used to wash silica sand, including: (Before we have introduced the 6 methods for removing iron from silica sand)

Scrubbing: This technique is used to remove clay and other impurities from the surface of the sand particles.

Washing: This technique involves washing the sand with water to remove any remaining impurities.

Rinsing: This technique involves rinsing the sand with clean water to remove any remaining washing agents.

Dewatering: This technique involves removing excess water from the washed sand to produce a dry product.

04What are Silica Sand Washing Equipment?

Back

Quartz sand washing equipment refers to a set of machines and devices designed to clean, process, and refine quartz sand. The goal is to remove impurities, such as clay, silt, and other unwanted materials, to produce high-quality sand for various applications. Here are some common quartz sand washing equipment:

1. Trommel Screen

A trommel screen is a rotating cylindrical screen used for separating and sorting different sized particles. It's particularly useful for the initial screening of raw quartz sand, as it can remove large impurities and separate the sand into different sizes.

2. Spiral Sand Washer

Also known as a spiral sand classifier, this equipment uses a spiral blade to agitate and clean the sand. It can remove impurities, such as clay and silt, by scrubbing and lifting the sand in a water-filled tank. The clean sand is then discharged through the bottom, while the impurities are separated and removed through the overflow weir.

spiral sand washer.jpg

3. Wheel Sand Washer

Operating similarly to a spiral sand washer, a wheel sand washer uses a wheel-like structure to clean the sand. It's suitable for washing, grading, and dewatering of fine-grained and coarse-grained materials. The clean sand is collected through a series of buckets, while the impurities are discharged with the water flow.

4. Hydrocyclone

A hydrocyclone is a device that uses centrifugal force to separate sand particles from water. It's often used in combination with other sand washing equipment to further refine the sand and remove ultrafine impurities like fine silt and clay.

5. Attrition Scrubber

An attrition scrubber is a machine that uses intense scrubbing action to clean the sand and break up any clay or mineral coatings on the surface of the particles. It's particularly useful for handling sticky materials and improving the quality of quartz sand.

scrubber for silica sand washing.jpg

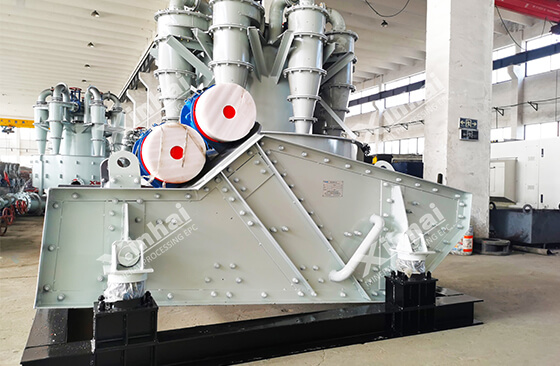

6. Dewatering Screen

After the washing process, the sand often contains a significant amount of water. A dewatering screen is used to remove excess water and produce a drier, more manageable product. This equipment consists of a vibrating screen with a high-frequency motor, which helps separate the water from the sand particles.

dewatering screen for silica sand washing.jpg

7. Thickener

A thickener is used to recover water for reuse and reduce the amount of wastewater generated by the sand washing process. It works by allowing solid particles to settle to the bottom, while the clarified water overflows from the tank.

05Conclusion

Back

Silica sand washing plants are a critical facility in the production of high-quality sand products. The washing process ensures that the sand is free from impurities and has a uniform size distribution, making it suitable for use in a variety of industries. By using the right washing techniques, manufacturers can produce top-tier sand products that meet the required specifications for each industry. Therefore, it is crucial to give due attention to the silica sand washing process to ensure the production of high-quality sand products.
