Understanding the Extraction of Copper from Copper Pyrite

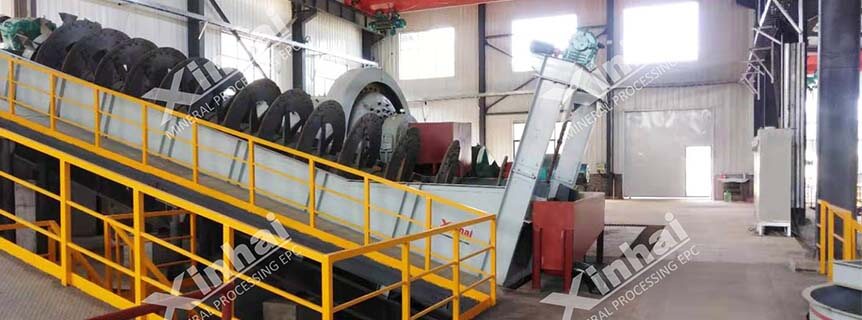

( 500tpd copper ore classifier in Laos )

Copper is one of the most important metals in the world, utilized in electrical wiring, plumbing, and various alloys. Its extraction from ores, particularly copper pyrite (CuFeS₂), plays a crucial role in the global copper supply. Copper pyrite, also known as chalcopyrite, is the primary source of copper, comprising about 34% copper by weight. This article explores the processes involved in the extraction of copper from copper pyrite, including the methods, chemical reactions, and environmental considerations.

Copper pyrite is a sulfide mineral that is abundant in nature. It is often found in large deposits, making it economically viable for copper extraction. The mineral contains not only copper but also iron and sulfur, which are released during the extraction process. Understanding how to efficiently extract copper from copper pyrite is essential for mining operations and the overall economy.

The extraction of copper from copper pyrite involves several steps, including concentration, roasting, and smelting. Each phase plays a vital role in isolating copper from the ore.

1). Concentration

The first step in the extraction process is the concentration of copper pyrite. This is typically done using a technique called flotation, which separates valuable minerals from waste rock.

Flotation Process: In flotation, the crushed ore is mixed with water and a frothing agent to create a slurry. Air is then introduced into the mixture, forming bubbles that attach to the copper pyrite particles. The hydrophobic (water-repelling) copper pyrite is lifted to the surface, forming a froth that can be skimmed off. This process increases the concentration of copper in the ore, making the subsequent extraction stages more efficient.

2). Roasting

Once concentrated, the copper pyrite undergoes roasting, where it is heated in the presence of air. This step serves two purposes: it oxidizes the sulfide minerals and drives off sulfur dioxide (SO₂).

Chemical Reactions: The primary chemical reaction during roasting can be represented as follows:

2CuFeS₂+5O₂→2Cu₂O+2FeO+4SO₂

This reaction produces copper(I) oxide (Cu₂O), iron(II) oxide (FeO), and sulfur dioxide. The removal of sulfur is crucial as it reduces the environmental impact of the subsequent smelting process.

3). Smelting

The next step is smelting, where the roasted material is mixed with a flux (usually silica) and heated in a furnace. The purpose of smelting is to extract metallic copper from the copper oxides formed during roasting.

Smelting Process: The smelting reaction can be summarized as follows:

2Cu₂O+C→4Cu+CO₂

During smelting, the copper(I) oxide reacts with carbon (from coke) to produce metallic copper and carbon dioxide. The molten copper settles at the bottom of the furnace, while impurities float to the surface as slag, which can be removed.

4). Refining

After smelting, the crude copper obtained is typically around 95% pure. To achieve higher purity levels (up to 99.99%), refining processes such as electrolysis are employed.

Electrolytic Refining: In this process, the crude copper is used as an anode in an electrolytic cell. When an electric current is passed through the cell, copper ions dissolve from the anode and deposit onto a cathode, resulting in high-purity copper.

The extraction of copper from copper pyrite has significant environmental implications. One of the primary concerns is the emission of sulfur dioxide during roasting, which can lead to acid rain if released into the atmosphere. Additionally, the mining and processing activities can lead to habitat destruction and water pollution.

To mitigate these impacts, many mining companies are adopting sustainable practices:

Sulfur Dioxide Management: Technologies such as flue gas desulfurization can capture sulfur dioxide emissions and convert them into sulfuric acid, which can be reused in industrial processes.

Water Management: Implementing closed-loop water systems can reduce water usage and prevent contamination of local water sources.

Understanding the extraction of copper from copper pyrite is essential for both the mining industry and environmental stewardship. The processes of concentration, roasting, smelting, and refining are integral to producing copper, a metal that underpins modern technology and infrastructure. While the extraction methods have evolved over the years, ongoing advancements aim to improve efficiency and reduce environmental impact. As the demand for copper continues to grow, sustainable practices will play a critical role in the future of copper extraction from copper pyrite, ensuring that this valuable resource is available for generations to come.
