What Machines Are Used for a Tungsten Processing Plant?

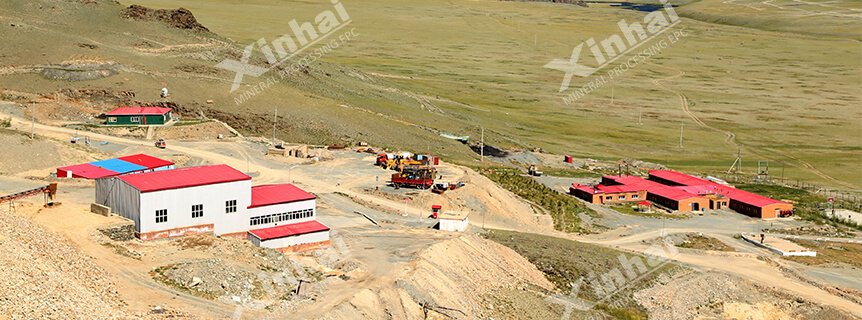

Tungsten, with its unique properties such as high melting point and density, is an essential material in the manufacturing of various high-performance products. The processing of tungsten ore into a usable form is a complex industrial operation that requires a range of specialized machinery. Understanding the role of each machine in the process is crucial for the efficient operation of a tungsten processing plant.

The initial stage of tungsten processing involves the breaking down and concentration of the raw ore. The primary machines used in this stage include:

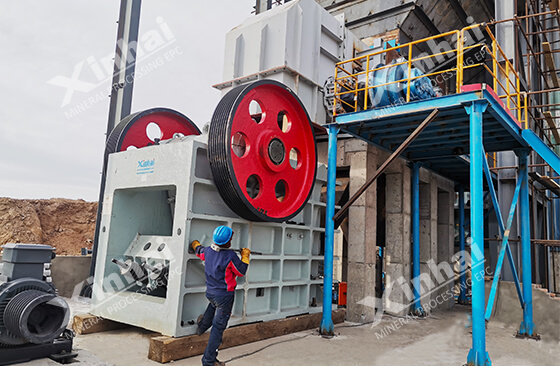

Crushing Equipment: Jaw crushers and gyratory crushers are typically used to reduce the size of the tungsten ore from large chunks into smaller pieces. This process makes the subsequent stages of processing more manageable and efficient.

Grinding Mills: After crushing, the ore is further reduced in size using grinding mills such as ball mills or rod mills. These machines grind the ore into fine particles, facilitating the separation of tungsten from other materials.

Concentration Tables: These are used to separate tungsten based on its density. The ore particles are washed over the riffles of the table, and the heavier tungsten particles are collected while the lighter gangue material is washed away.

Flotation Cells: In this machine, chemical reagents are introduced to the ground ore, which helps in the separation of tungsten-bearing minerals from the non-tungsten material. The air is blown through the mixture causing the valuable minerals to attach to the air bubbles and float to the top, where they are then collected.

Once the tungsten has been concentrated, it must be further processed to remove impurities and produce a pure form of the metal. The secondary processing machines include:

Smelting Furnaces: The concentrated tungsten ore is subjected to high temperatures in a smelting furnace to separate the metal from the remaining impurities. The furnaces used in tungsten processing are typically electric arc furnaces or induction furnaces.

Refining Equipment: After smelting, the tungsten may still contain some impurities. Refining processes such as electrolytic refining or zone refining are used to further purify the metal. Electrolytic refining involves the use of an electrolytic cell where tungsten is dissolved from the anode and deposited onto the cathode, resulting in a purer form.

Alloying Furnaces: To enhance the properties of tungsten for specific applications, it is often alloyed with other metals. Alloying furnaces are used to melt and mix tungsten with other metals to create the desired alloy.

The final stage of tungsten processing involves shaping the metal into its final form, which can be achieved with the following machines:

Presses and Extruders: These machines are used to shape tungsten and its alloys into bars, rods, or other forms. Presses exert a high amount of pressure on the material, while extruders push it through a die to create a specific shape.

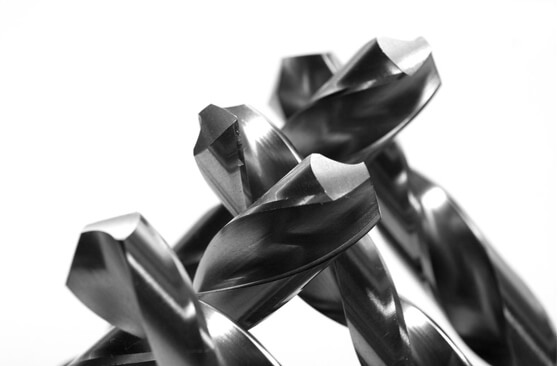

Grinding and Cutting Machines: To achieve precise dimensions and finishes, tungsten products are ground and cut using specialized machines such as surface grinders, cylindrical grinders, and CNC machines.

Heat Treatment Furnaces: Tungsten products often require heat treatment to improve their mechanical properties. These furnaces subject the tungsten to controlled heating and cooling processes to achieve the desired hardness and strength.

The machinery used in a tungsten processing plant is as diverse as the process itself. Each machine plays a critical role in transforming raw tungsten ore into a refined and usable metal. The efficiency and effectiveness of these machines directly impact the quality and cost of the final product. As technology advances, newer and more efficient machines are being developed to optimize the tungsten processing industry, ensuring that this valuable resource continues to be available for the high-performance applications that depend on it.
