What Is Gravity Separation? A Complete Guide

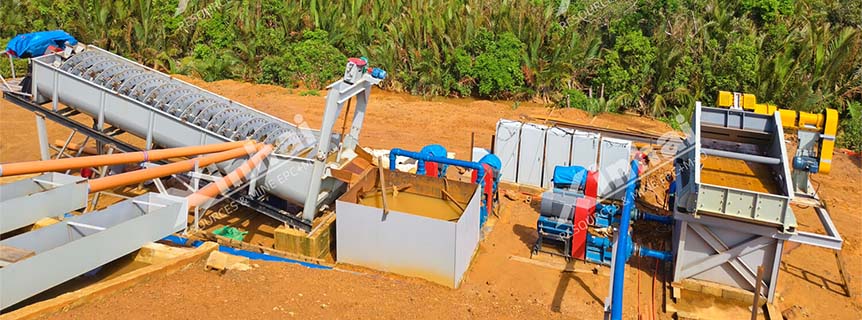

Placer gold ore gravity separation plant

Gravity separation is a mineral processing method that separates valuable minerals from unwanted materials by using differences in particle density. As a physical separation technique, it relies on natural forces such as gravity, water movement, and centrifugal force rather than chemical reactions. The process has been widely applied in mining operations for recovering gold, tin, tungsten, iron ore, coal, and other minerals. Its simple operating principle, low energy consumption, and environmentally friendly characteristics make it an important part of modern beneficiation systems.

This article explains the gravity separation process, including its working principles, main stages, equipment types, influencing factors, and applications in mineral processing operations.

1. Working Principle Of Separation

The gravity separation process is based on the difference in specific gravity between valuable minerals and surrounding waste materials. When ore particles enter a separation system, heavier minerals respond differently from lighter particles under the influence of gravity or fluid forces. Dense particles settle faster, while lighter materials remain suspended or move away with flowing water. This natural difference allows mineral processing plants to concentrate valuable materials without changing their chemical properties, creating an efficient and economical separation method.

2. Mineral Density Difference

Mineral density is the key factor that determines whether gravity separation can achieve effective results. Materials with a significant difference in specific gravity can be separated more easily because heavier particles have different movement characteristics compared with lighter particles. For example, gold can be recovered effectively because its density is much higher than most common rock minerals. Understanding mineral density helps engineers design suitable processing flowsheets and select the correct gravity separation equipment for different ore conditions.

3. Particle Movement Behavior

During the gravity separation process, mineral particles move according to their size, shape, and density characteristics. Larger and heavier particles usually settle faster, while smaller or lighter particles are more easily carried by water flow. The interaction between particle movement and equipment design determines the final separation efficiency. Proper control of particle conditions ensures better recovery performance and reduces the amount of valuable minerals lost during processing, especially when treating complex mineral ores.

1. Ore Preparation Stage

The first stage of gravity separation involves preparing raw ore materials for efficient processing. Mining materials usually undergo crushing, screening, and grinding to reduce particle size and improve mineral liberation. Proper preparation allows valuable minerals to separate more effectively from waste materials during later stages. Feed size distribution, moisture content, and material consistency must be carefully controlled because unsuitable feed conditions can reduce equipment performance and negatively affect concentrate quality.

2. Concentration Separation Stage

The concentration stage is the core part of the gravity separation process. Prepared ore enters gravity equipment where differences in density allow valuable minerals to separate from lighter materials. Depending on the ore characteristics, different machines such as jigs, shaking tables, spiral concentrators, or centrifugal concentrators may be used. During this stage, heavy mineral particles become concentrated while unwanted materials are removed as tailings. Proper equipment selection and operating control are essential for achieving high recovery rates.

3. Concentrate Collection Stage

After minerals are separated, the collected concentrate undergoes further handling and processing. The concentrate discharge system gathers valuable minerals from the separation equipment, while waste materials are transported away for disposal or additional treatment. The quality of the final concentrate depends on the efficiency of previous separation stages. In some operations, multiple gravity separation stages are combined to improve concentrate grade and recover additional valuable minerals from intermediate products.

4. Tailings Management Stage

Tailings management is an important part of the gravity separation process. Although gravity methods reduce waste compared with some chemical processes, residual materials still require proper handling. Efficient tailings management helps recover remaining valuable minerals, reduce environmental impact, and improve resource utilization. Some processing plants use additional separation methods to treat tailings and recover materials that were not captured during the initial gravity concentration stage.

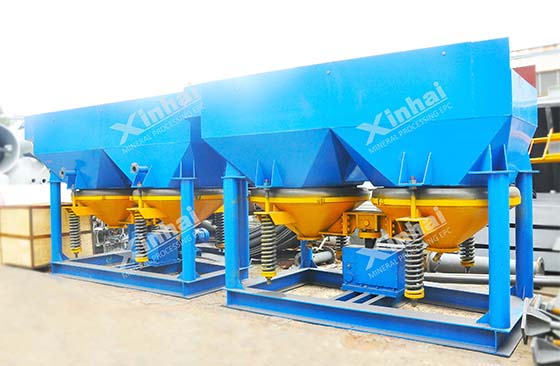

1. Jig Separation Equipment

Jig separators are widely used in the gravity separation process, especially for recovering coarse heavy minerals. These machines create repeated water pulsations that separate particles according to density. Heavy minerals move downward through the material bed, while lighter particles are discharged separately. Jigs are commonly applied in gold, tin, manganese, and iron ore processing because they offer high capacity, simple operation, and reliable performance. Their design makes them suitable for both small-scale and large industrial mineral processing plants.

jigs

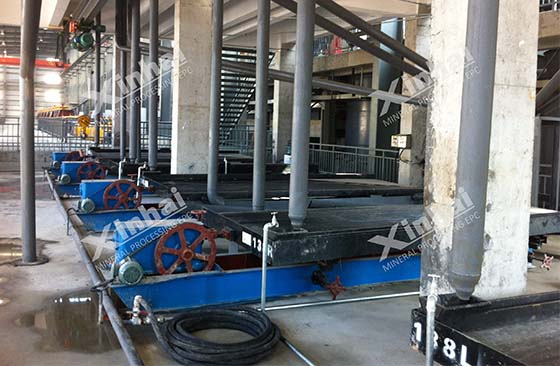

2. Shaking Table Equipment

Shaking tables provide precise separation by combining gravity, water flow, and mechanical vibration. During operation, mineral slurry moves across an inclined deck, causing heavier particles to collect in specific areas while lighter materials are washed away. This equipment is particularly effective for fine mineral recovery and concentrate upgrading. Shaking tables are commonly used in gold, tungsten, and tin processing because they provide excellent separation accuracy and produce high-quality concentrates.

shaking tables

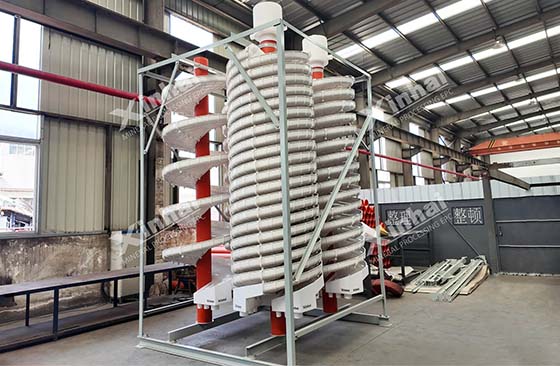

3. Spiral Concentrator Equipment

Spiral concentrators are an important part of many gravity separation circuits because they offer continuous processing with low energy requirements. Mineral slurry flows downward through a spiral channel, where gravity and centrifugal effects separate particles according to density. Heavy minerals move toward the inner section, while lighter materials move outward. Spiral concentrators are widely used for iron ore, chromite, coal, and mineral sands processing due to their simple structure, low maintenance needs, and strong processing capacity.

spiral chutes

4. Centrifugal Separation Equipment

Centrifugal concentrators improve the gravity separation process by creating stronger forces to recover fine heavy minerals. These machines are especially useful when conventional gravity equipment cannot effectively capture small valuable particles. The rotating bowl generates enhanced separation forces, allowing fine gold and other heavy minerals to be recovered efficiently. Modern centrifugal equipment often includes automated controls and adjustable operating parameters, making it suitable for advanced mineral processing applications.

1. Ore Characteristics

The properties of the ore strongly influence gravity separation performance. Mineral density differences, particle size distribution, liberation degree, and mineral composition determine how effectively materials can be separated. Before designing a gravity separation process, engineers usually conduct mineral analysis and testing to understand the ore behavior. This information helps determine the most suitable equipment combination and operating conditions, improving recovery efficiency while reducing unnecessary processing costs.

2. Equipment Operating Conditions

The operating conditions of gravity separation equipment directly affect separation results. Water flow rate, feed rate, vibration intensity, rotation speed, and equipment settings must be properly adjusted according to material characteristics. Small changes in operating parameters can influence concentrate quality and recovery performance. Regular monitoring and optimization allow processing plants to maintain stable production and achieve better results throughout the operation period.

3. Process Optimization

Continuous optimization is necessary to maximize the efficiency of gravity separation systems. Modern mineral processing plants often combine equipment adjustments, automation technology, and data monitoring to improve performance. Optimized processes can increase mineral recovery, reduce energy consumption, and improve concentrate quality. By continuously evaluating operational data, mining companies can identify improvement opportunities and maintain efficient gravity separation performance over the long term.

The gravity separation process is an effective mineral beneficiation method that uses differences in density to separate valuable minerals from waste materials. The process includes ore preparation, concentration separation, concentrate collection, and tailings management stages. Equipment such as jigs, shaking tables, spiral concentrators, and centrifugal concentrators provides different solutions for various mineral recovery requirements. By optimizing ore conditions, equipment selection, and operating parameters, gravity separation helps mining operations achieve efficient, economical, and sustainable mineral processing.
