Ultimate Guide to Gravity Separation Equipment in Chrome Ore Beneficiation

LauraLaura Dec 14, 2023Dec 14, 2023 223223
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

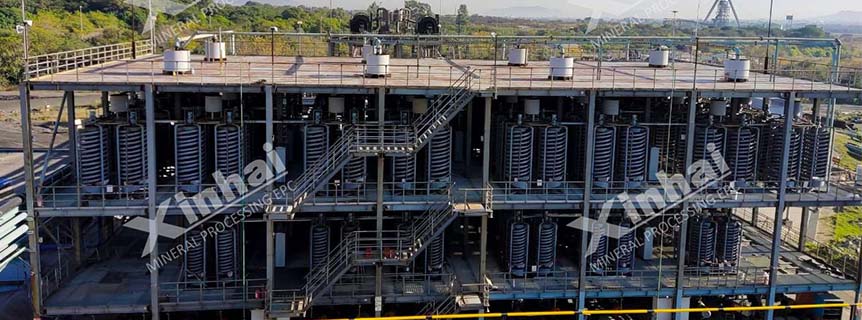

Spiral chute in South Africa 3000tpd chromite flotation plant.jpg

( Spiral chute in South Africa 3000tpd chromite flotation plant )

Chrome ore beneficiation is a crucial process that aims to remove unwanted impurities and enhance the quality of chrome ore, ultimately making it suitable for various industrial applications. Among the numerous beneficiation techniques available, gravity separation stands out as an effective and widely used method. This article will provide a comprehensive guide on gravity separation equipment in chrome ore beneficiation, exploring its significance, principles, types of equipment, process optimization, and its advantages and limitations.

01Understanding Gravity Separation in Chrome Ore Beneficiation

Back

Gravity separation is a physical separation process that relies on the density difference between the ore minerals and gangue minerals. By utilizing the force of gravity and the specific gravity differences between the particles, this method efficiently separates valuable minerals from the waste materials. In the context of chrome ore beneficiation, gravity separation is an essential technique for removing silicate minerals and improving the overall efficiency of the process.

02Principles of Gravity Separation in Chrome Ore Beneficiation

Back

The principles of gravity separation in chrome ore beneficiation are based on the Archimedes principle and the difference in densities between different minerals. The heavier minerals tend to settle at the bottom due to gravity, while the lighter gangue minerals float to the top. By controlling different parameters like fluid velocity, particle size, and the inclination of the equipment, proper separation is achieved.

03Types of Gravity Separation Equipment

Back

Shaking Tables

Shaking tables are one of the most commonly used gravity separation equipment in chrome ore beneficiation. These tables consist of a deck tilted at a slight angle and oscillating horizontally. As the ore feed flows across the deck, the heavier particles settle into the riffles along the deck, while the lighter particles are carried off the table.

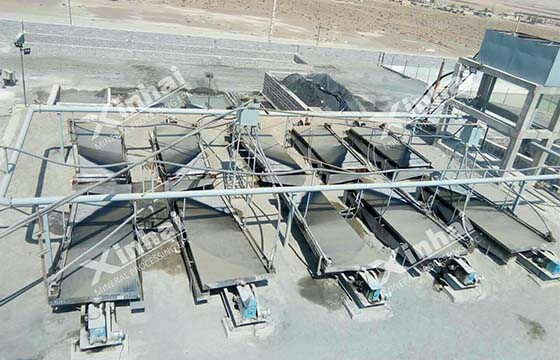

Shaking Table - Gravity Separation Equipment in Chrome Ore Beneficiation.jpg

( Shaking Table - Gravity Separation Equipment in Chrome Ore Beneficiation )

Spiral Concentrators

Spiral concentrators are efficient gravity separation devices used to separate different minerals based on densities. The spiral concentrator consists of a helical chute with multiple turns. As the pulp flows down the spiral, centrifugal force and gravity cause the heavier particles to move towards the inner part of the spiral, while the lighter particles move towards the outer part.

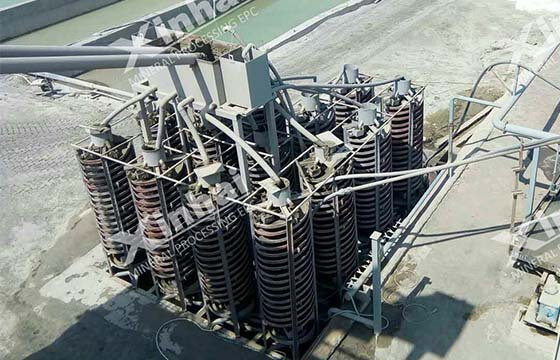

Spiral Chute - Gravity Separation Equipment in Chrome Ore Beneficiation.jpg

( Spiral Chute - Gravity Separation Equipment in Chrome Ore Beneficiation )

Jigging Machines

Jigging machines are another common gravity separation equipment utilized in chrome ore beneficiation. The jigging process involves the pulsation of water through a bed of ore particles. The differences in specific gravity between the valuable minerals and gangue minerals allow for effective separation.

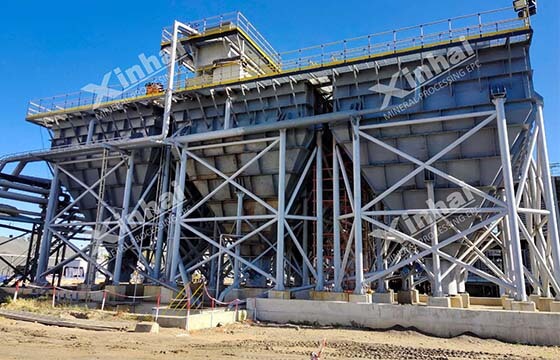

Jigging machines - Gravity Separation Equipment in Chrome Ore Beneficiation.jpg

( Jigging machines - Gravity Separation Equipment in Chrome Ore Beneficiation )

Dense Media Separation (DMS) Cyclones

Dense Media Separation cyclones are used for pre-concentrating chrome ore before subsequent processing. In this method, a suspension of the crushed ore in a dense medium is introduced into the cyclone. The dense medium with a specific gravity greater than the gangue minerals allows for efficient separation.

04Process Optimization in Gravity Separation

Back

To maximize the efficiency of gravity separation in chrome ore beneficiation, process optimization is crucial. Several factors need to be considered.

Particle Size

Controlling the particle size is essential for effective gravity separation. Fine particles are more difficult to separate than larger particles. Therefore, proper crushing and grinding techniques should be applied to ensure a suitable particle size distribution.

Density of the Suspension

The density of the suspension used in gravity separation affects the separation efficiency. By adjusting the density, the relative difference in density between valuable minerals and gangue minerals can be enhanced, leading to improved separation.

Water Flow Rate

The flow rate of water across the gravity separation equipment influences the separation efficiency. Optimal flow rates need to be determined to ensure effective separation without excessive turbulence or loss of valuable minerals.

05Advantages and Limitations of Gravity Separation Equipment

Back

Gravity separation equipment offers several advantages for chrome ore beneficiation:

Non-power-consuming: Gravity separation equipment does not require significant energy consumption, making it a cost-effective method.

Environmentally friendly: The process does not involve chemicals or reagents that could potentially harm the environment.

Versatility: Gravity separation equipment can be applied to various ores, making it a versatile and widely applicable technology.

However, there are limitations to consider:

Low efficiency for fine particles: Gravity separation may not be as efficient for fine particles, necessitating additional processing methods.

Size limitations: The effectiveness of gravity separation decreases as the size of the particles exceeds certain limits.

06Conclusion

Back

Gravity separation equipment plays a crucial role in chrome ore beneficiation by effectively removing impurities and improving the quality of the final product. Understanding the principles, types of equipment, and process optimization is essential to ensure efficient separation. Despite some limitations, gravity separation remains a cost-effective and environmentally friendly method for chrome ore beneficiation. As technology advances, further improvements in equipment design and process optimization can be expected, leading to enhanced efficiency and higher-quality chrome ore.

Note: Need assistance in selecting the right gravity separation equipment for your specific requirements? Contact our knowledgeable team for expert advice!
