A Complete Guide to Alluvial Gold Mining

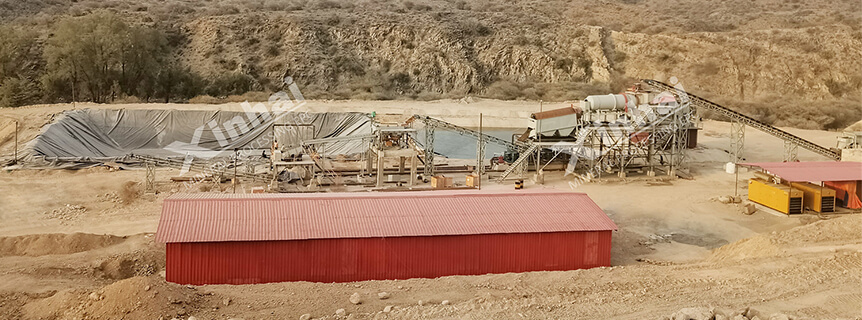

( 200tph gold placer production line )

Alluvial gold mining is one of the oldest and most popular methods for extracting gold from the earth. It's a process that involves the extraction of gold from placer deposits — loose materials like sand, gravel, and soil — which have been carried by natural forces such as water. This guide will cover everything you need to know about alluvial gold mining, including how it works, the equipment used, the methods of extraction, and the environmental considerations.

Whether you're a beginner or an experienced prospector, this comprehensive guide will help you understand the steps, techniques, and tools involved in mining alluvial gold efficiently.

Alluvial gold refers to gold that is found in loose material such as sand, gravel, or clay, often in riverbeds, floodplains, or ancient river channels. These gold particles were once part of solid rock formations but have been broken down and transported by water over time. Alluvial gold is typically fine in texture and is often found in concentrated deposits due to the action of flowing water.

Alluvial gold mining is a relatively simple yet efficient process that can be done on both a small scale (artisanal mining) or large scale (commercial mining). Here are the typical steps involved:

1. Location and Exploration

The first step in alluvial gold mining is identifying areas where gold deposits may have been naturally deposited. Miners typically look for signs of placer deposits in rivers, streams, or old riverbeds. Tools like gold pans, sluice boxes, and modern geological surveys help determine the best locations for mining.

2. Extraction of Gold-Laden Material

Once a location has been identified, miners begin extracting material that is rich in gold particles. This could involve dredging, panning, shoveling, or using larger equipment like excavators to gather soil, gravel, and sand from riverbeds or floodplains.

3. Washing and Separation

After the material is gathered, it is processed to separate gold from other debris. This is where washing comes into play. The material is washed to remove dirt and lighter materials. Sluice boxes, trommels, or shaker tables are used to help separate gold from the soil based on differences in density.

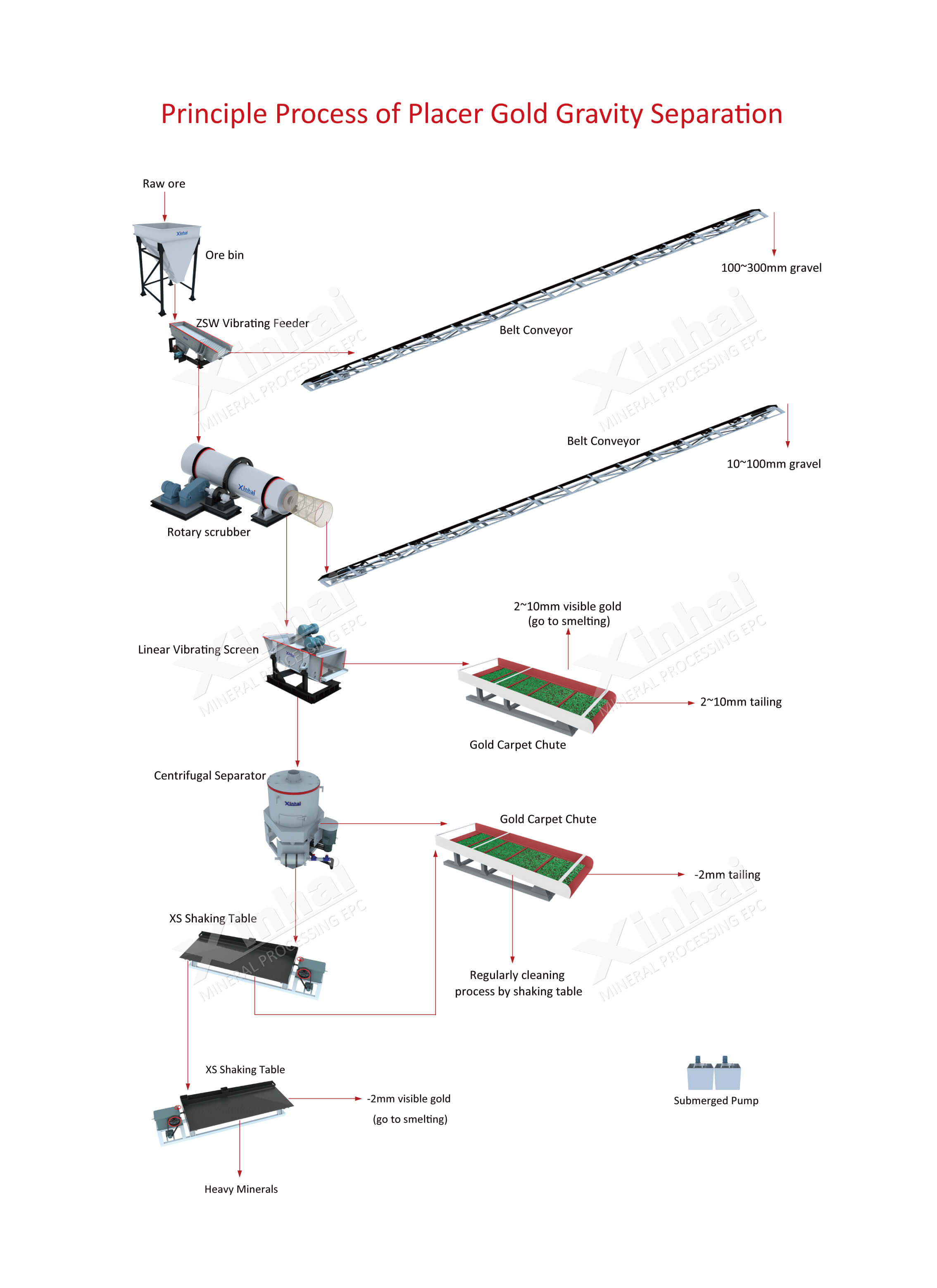

( principle process of placer gold gravity separation )

4. Gold Recovery

After washing and separation, the gold particles are collected in sluices or concentrators. Larger operations may use centrifugal concentrators or gravity separation methods to increase the efficiency of gold recovery. The recovered gold is then refined to remove impurities.

5. Final Purification

In commercial mining, after recovery, the gold concentrate may undergo further purification using methods such as cyanidation or smelting to extract pure gold.

The tools and equipment used in alluvial gold mining can range from basic hand tools to complex machinery, depending on the scale of operations.

1. Gold Pan

The simplest and most traditional tool used for alluvial gold mining is the gold pan. Panning involves filling the pan with gold-bearing material, adding water, and gently shaking it to separate the gold from lighter debris.

2. Sluice Box

A sluice box is a long, narrow box that uses water to help separate gold from lighter materials. Gold-bearing material is placed in the sluice, and water is flowed through it to wash away the lighter particles while the gold settles to the bottom.

3. Trommel

A trommel is a rotating drum that helps wash and separate material more efficiently than a sluice box. The trommel is particularly effective in processing large quantities of alluvial material.

4. Dredger

A gold dredger is a floating device used to extract gold from riverbeds or ponds. Dredgers scoop up material from the bottom of water bodies, transport it to a floating processing unit, and separate the gold from the waste material.

5. Shaker Table

A shaker table is used to further separate gold from lighter debris after the initial separation process. It uses vibration and gravity to concentrate gold particles.

6. Centrifugal Concentrator

A centrifugal concentrator uses centrifugal force to enhance the separation of gold from other materials. It's particularly effective at recovering fine gold that may otherwise be lost.

There are several methods employed to recover gold from alluvial deposits:

1. Gravity Separation

This is the most common method for recovering gold from alluvial deposits. Gold is naturally dense, so gravity-based techniques such as sluicing, shaking tables, and centrifugal concentrators use water to separate gold from other materials based on weight.

2. Cyanidation

In large-scale operations, cyanide leaching may be used to dissolve gold from the concentrate. This method is most effective for fine gold and requires special safety measures to prevent harm from cyanide.

3. Mercury Amalgamation

Although less common today due to its environmental impact, some small-scale miners still use mercury to amalgamate gold. The mercury binds with gold, forming an alloy that can be easily separated. However, mercury is toxic and harmful to the environment, making it a dangerous method in modern alluvial mining.

While alluvial gold mining is often seen as less invasive than hard rock mining, it can still have significant environmental impacts, including:

Soil Erosion: The removal of vegetation and the disturbance of riverbanks can lead to erosion, which may harm local ecosystems.

Water Pollution: Chemicals like mercury or cyanide can contaminate water sources if not disposed of properly.

Habitat Destruction: Mining operations can destroy habitats for wildlife and alter the landscape, especially in sensitive ecosystems like riverbeds and wetlands.

To minimize environmental harm, it's important to adopt sustainable mining practices. These include using non-toxic recovery methods, rehabilitating mined areas, and adhering to local regulations to protect the environment.

Lower Initial Investment: Alluvial mining requires less capital investment compared to hard rock mining, making it accessible to small-scale miners.

Easier to Scale: Operations can start small and scale up as needed. Small teams of miners can work together to extract gold efficiently without the need for large machinery.

Lower Risk: Alluvial mining doesn't require deep digging or tunneling, which reduces the risk of accidents compared to underground mining.

❓ What is the difference between alluvial gold and hard rock gold?

Alluvial gold is found in loose material like sand and gravel, whereas hard rock gold is embedded in solid rock, requiring more complex mining techniques.

❓ Is alluvial gold mining profitable?

Yes, alluvial gold mining can be profitable, especially if you are mining in areas with high concentrations of gold. The profitability depends on the scale of your operation and the gold recovery rate.

❓ Can alluvial gold mining be done without heavy machinery?

Yes, small-scale miners can use simple tools like gold pans, sluice boxes, and manual panning techniques to extract gold from alluvial deposits.

Alluvial gold mining has remained a popular method of gold extraction for centuries due to its simplicity, cost-effectiveness, and accessibility. Whether you are an artisanal miner or part of a larger mining operation, understanding the process, equipment, and recovery techniques involved in alluvial gold mining is essential for success.

If you're just getting started in gold mining, or if you want to expand your knowledge, this guide provides a complete overview of alluvial gold mining methods, tools, and best practices. By using the right equipment and techniques, you can significantly increase your chances of recovering gold efficiently and responsibly.

Feel free to contact us and learn more about alluvial gold mining solutions!
