The Ultimate Guide to Quartz Ore Processing

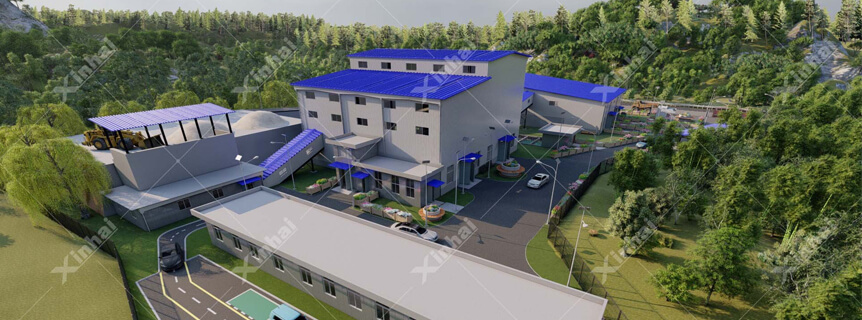

quartz sand processing plants

Quartz ore is an important non-metallic mineral resource with wide applications and prominent economic value. Run-of-mine quartz ore is usually associated with impurities such as clay, iron and mica, making it difficult to directly meet industrial application requirements. Research on mineral processing technology for common quartz ore is practically significant for improving ore utilization rate and ensuring raw material quality. Based on the characteristics of run-of-mine quartz ore, this paper briefly introduces the processing flow, key equipment and tailings disposal methods, aiming to explore an efficient, economical and environmentally friendly technical route for mineral processing, and provide a reference for the rational development and large-scale production of quartz ore resources.

1. Overview of Quartz Ore

Quartz ore is mainly composed of silicon dioxide (SiO₂), mostly appearing in white, milky white, transparent or translucent forms. It features acid resistance, high temperature resistance and stable chemical properties, with a wide range of applications. Major deposits are distributed in China, Brazil, the United States, Russia and other countries.

2. Processing Flow

• Crushing and screening

• Ore washing and desliming

• Grinding and classification

• Magnetic separation for iron removal

• Flotation/Gravity separation

1. Crushing and Screening Equipment

• Jaw crusher

• Cone crusher/impact crusher

• Vibrating screen

2. Ore Washing and Desliming Equipment

• Wheel sand washer

• Screw sand washer

• Drum washer

• Dewatering screen

3. Grinding and Classification Equipment

• Ball mill

• Rod mill

• Spiral classifier

• Hydrocyclone

4. Separation and Purification Equipment

• Permanent magnetic drum separator

• High gradient magnetic separator

• Flotation Cell

• Shaking table/spiral chute

5. Dewatering and Drying Equipment

• Thickener

• Filter press

• Dryer

• Belt conveyor

1. Tailings Collection

• Tailings and wastewater generated from flotation, magnetic separation and ore washing are collected centrally.

2. Thickening and Dewatering

• Slurry is dewatered by thickeners, filter presses or dewatering screens to achieve dry discharge and reduce moisture content.

3. Tailings Storage

• Dewatered dry tailings are transported to special tailings ponds for safe storage, with proper anti-seepage, flood control and dust suppression measures.

4. Backwater Utilization

• The separated wastewater is recycled to ore washing and flotation processes after sedimentation and purification, saving water consumption.

5. Comprehensive Utilization

• Some tailings containing valuable minerals such as feldspar and mica can be recovered; they can also be used in brick making, sand manufacturing, road construction and other fields.

Quartz ore processing focuses on impurity removal and purification. Through crushing, ore washing, grinding, magnetic separation, flotation and other processes, impurities such as iron, aluminum and mica are effectively removed to increase silicon dioxide content and meet industrial production demands. The supporting equipment is complete, and the technology is mature, stable and widely applicable. Tailings are concentrated, dewatered for dry discharge and stored centrally, with wastewater recycled, which not only reduces resource waste but also meets environmental and safety requirements. The overall production process is efficient, economical and environmentally friendly, enabling rational development and sustainable utilization of quartz resources, with good industrial application value and promotion prospects.
