How to Extract Cobalt from Ore?

ShirleyShirley Dec 08, 2023Dec 08, 2023 13591359
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

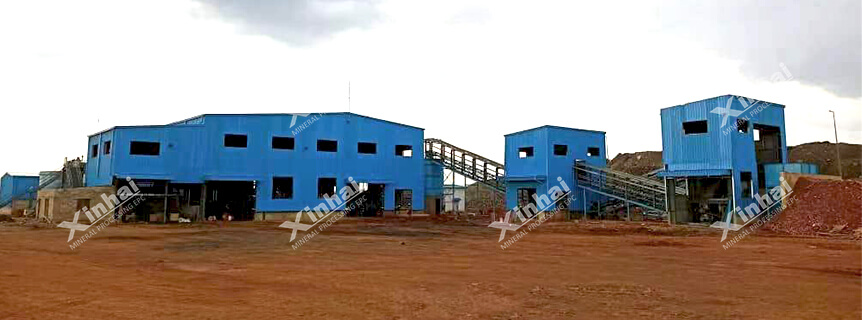

Congo 100tpd copper-cobalt flotation plant.jpg

Cobalt, an essential metal in various industries, is primarily extracted from its ores. The process of extracting cobalt from ore involves several steps, each playing a vital role in obtaining this valuable element. This article will provide a comprehensive guide on how to extract cobalt from ore, highlighting the key processes and techniques involved.

01 Ore Selection

Back

The first step in cobalt extraction is selecting the appropriate ore. Cobalt is commonly found in association with copper and nickel ores, such as cobaltite, carrollite, and skutterudite. These ores are typically mined from underground or open-pit operations.

02 Ore Crushing and Grinding

Back

Once the ore is obtained, it undergoes crushing and grinding to reduce its size and increase the surface area for further processing. This step is crucial for efficient extraction and is usually carried out using crushers and mills.

ball mill in copper-cobalt processing plant.jpg

03 Concentration

Back

After crushing and grinding, the ore is subjected to a concentration process to separate cobalt-rich minerals from the gangue material. Various techniques such as gravity separation, magnetic separation, and flotation are employed to achieve this.

04 Froth Flotation

Back

Froth flotation is a widely used method for concentrating cobalt minerals. In this process, chemicals known as collectors are added to the ore slurry to selectively attach to cobalt minerals, forming a froth layer on the surface. The froth, containing cobalt-rich minerals, is then skimmed off and further processed.

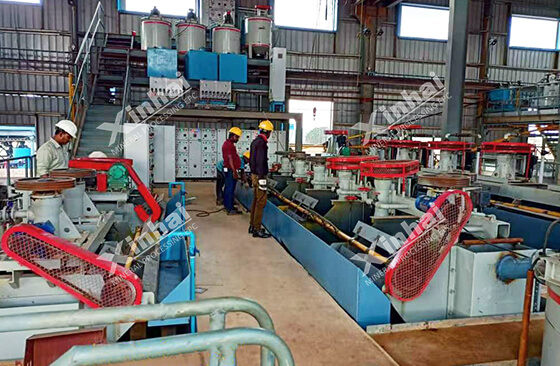

flotation cells in copper-cobalt processing plant.jpg

05 Roasting and Smelting

Back

Once the cobalt minerals are concentrated, they undergo additional steps to extract cobalt in a usable form. Roasting is a common technique where the ore is heated in the presence of air to remove impurities and convert cobalt sulfides into oxides. Smelting follows, where the roasted ore is melted at high temperatures to separate cobalt from other elements.

06 Leaching

Back

Leaching is another method used for cobalt extraction, especially for low-grade ores or complex mineral compositions. In this process, the ore is finely ground and then subjected to chemical treatment with acids or alkalis to dissolve cobalt compounds. The resulting solution is further processed to recover cobalt.

07 Electrowinning and Electrorefining

Back

Electrowinning and electrorefining are electrochemical processes used to purify and recover cobalt from leach solutions. In electrowinning, an electric current is passed through the solution, causing cobalt ions to be reduced and deposited onto cathodes. Electrorefining further purifies the cobalt by removing impurities through an electrochemical process.

08 Precipitation and Crystallization

Back

In some cases, cobalt can be precipitated from solution by adjusting the pH or through the addition of specific reagents. This precipitation process allows for the recovery of cobalt in solid form. Crystallization techniques can also be employed to obtain high-purity cobalt salts or compounds.

09Conclusion

Back

Extracting cobalt from ore involves a series of complex processes, combining physical and chemical techniques to separate and purify this valuable metal. The selection of suitable ores, crushing and grinding, concentration, froth flotation, roasting, smelting, leaching, and various refining methods all contribute to the successful extraction of cobalt. With technological advancements and ongoing research, the efficiency and sustainability of cobalt extraction continue to improve, ensuring a stable supply of this critical element for industries such as battery manufacturing, aerospace, and electronics.

You can also click to know the price of building a cobalt extraction plant.
