How to Process Pegmatite Lithium Ore?

ShirleyShirley Feb 23, 2023Feb 23, 2023 379379
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

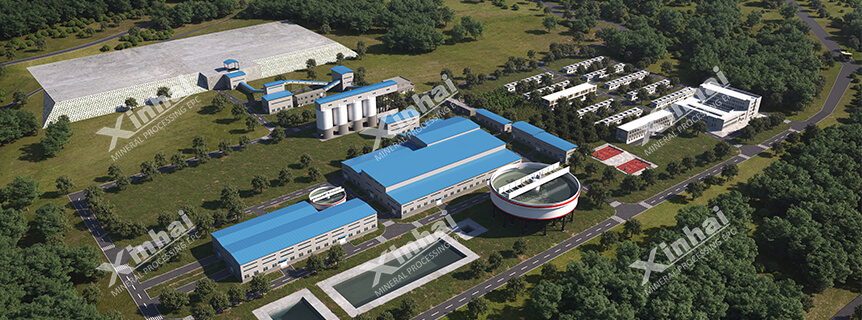

Zimbabwe 5000tpd lithium processing plant.jpg(Zimbabwe 5000tpd lithium processing plant)

Pegmatite lithium ore is an important lithium resource. In pegmatite-type spodumene deposits, spodumene coexists with silicate minerals such as feldspar, quartz, and beryl. These minerals have similar surface physical and chemical properties, and it is difficult to separate them. Flotation is a common method for selecting pegmatite spodumene. In this paper, we will introduce the flotation influencing factors, flotation process and flotation reagents of pegmatite spodumene.

01Factors Affecting Flotation of Pegmatite Spodumene


The factors affecting the flotation of pegmatite-type spodumene mainly include grinding fineness, ore slime and floating impurities.

1. Grinding fineness

During the flotation process of pegmatite-type spodumene, the coarse-grained minerals of spodumene are difficult to float. When the particle size of spodumene is around 0.2mm, its flotation recovery rate is low. Generally, the flotation particle size of pegmatite-type spodumene is below 0.15mm, and the specific value should be determined with the change of spodumene intercalation particle size.

2. Ore slime and floating impurities

When the surface of pegmatite-type spodumene ore is polluted by weathering or mud, the floatability of spodumene minerals becomes poor. In production practice, it is necessary to set up desliming operations before flotation of spodumene minerals or give priority to flotation of easily floatable impurities.

China 2500tpd lithium processing plant.jpg

(China 2500tpd lithium processing plant)

02Flotation Technology of Pegmatite Spodumene


At present, the flotation process used for pegmatite-type spodumene mainly includes direct flotation process, pre-deliming flotation process, and stage grinding stage flotation process.

1. Direct flotation process

The distribution of lithium minerals in pegmatite-type spodumene is uneven, and some lithium minerals may be lost with the removal of slime. In order to recover this part of lithium minerals, a direct flotation process can be used. Perform reverse flotation to remove gangue minerals such as sulfide ore, mica and quartz, and then carry out spodumene flotation to obtain better spodumene flotation effect.

2. Pre-deslimed flotation process

Pegmatite-type spodumene is easy to produce slime, which affects the flotation of target minerals, mainly in affecting the viscosity of the slurry, consuming a large amount of chemicals, polluting the surface of spodumene mineral particles, and activating gangue minerals. Therefore, for complex spodumene ores with high degree of weathering and severe mudification, pre-deliming-flotation spodumene process can be used for separating.

3. Stage Grinding Stage Flotation Process

The distribution of pegmatite spodumene is not uniform, and the floatability of spodumene minerals with different particle sizes is also different. Among them, coarse-grained spodumene with a particle size of 74-38 μm has better buoyancy, while among gangue minerals, finer-grained spodumene below 38 μm has better buoyancy. Therefore, the over-grinding of gangue minerals can be reduced by means of stage grinding and stage flotation, so that the floatability of gangue minerals can be reduced.

lithium flotation-magnetic separation process.jpg

(Lithium flotation-magnetic separation process)

03Flotation chemicals for pegmatite spodumene


1. Spodumene collector

Spodumene flotation collectors mainly include the use of single collectors and combined collectors. Single collectors can be divided into cationic collectors for reverse flotation and anionic collectors for forward flotation. Cationic collectors are generally amine collectors, and dodecylamine is a more commonly used collector, which is mainly used for reverse flotation of quartz, mica and other gangue minerals in roughing operations. Anionic collectors are generally fatty acid and its soap collectors, including oleic acid, sodium oleate, naphthenic acid soap, oxidized paraffin wax soap, etc.

The spodumene combined collector can exert the synergistic effect of various agents to obtain the ideal flotation capacity index. Common combined collectors include sodium oleate + oxidized paraffin soap, oleic acid + naphthenic acid + fuel oil , Oxidized paraffin soap + xamic acid, oxidized paraffin soap + naphthenic acid soap and so on.

In addition to the above commonly used collectors, there are also a large number of new collectors for spodumene flotation, such as YOA-15, YZB-17, and other chelating collectors.

2. Spodumene regulator

Since the buoyancy of spodumene and gangue minerals in pegmatite-type spodumene is similar, it is necessary to expand the difference in buoyancy between spodumene and gangue minerals by adding regulators. The regulator of spodumene flotation is mainly "three alkalis", including sodium carbonate, sodium hydroxide and sodium sulfide. In addition, there are newer inhibitors such as disodium edetate.

flotation cell for lithium processing.jpg

(Flotation cell for lithium processing)

04To Wrap Up


The above is about the flotation of pegmatite spodumene. In actual production, it is necessary to carry out beneficiation tests on specific ore samples to further determine the actual lithium production process and pharmaceutical system, avoid unsuitable technical processes leading to unsatisfactory indicators, and reduce economic losses and waste of resources.
