Small Scale Gold Leaching Plant Equipment List

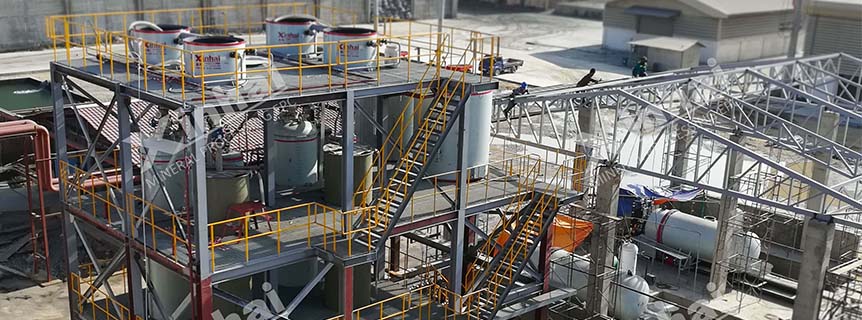

300kg desorption electrolysis system

Small scale gold leaching plants are widely used in the mining industry for processing low to medium-capacity gold ores. These plants are designed to recover gold efficiently through cyanide leaching, carbon adsorption, and related extraction technologies. Choosing the right equipment is essential for improving recovery rates, reducing operating costs, and ensuring stable plant performance.

1. Ore Crushing Equipment

Crushing equipment is the first stage in a small scale gold leaching plant. Jaw crushers and hammer crushers are commonly used to reduce large gold ore into smaller particles suitable for grinding.

Proper crushing improves downstream processing efficiency and ensures stable feeding to the grinding circuit. Efficient size reduction also helps increase gold liberation during milling operations.

2. Grinding and Classification Equipment

Ball mills are widely used in small scale gold processing plants for fine grinding. They help liberate gold particles from surrounding gangue minerals before the leaching stage.

Hydrocyclones and spiral classifiers are often installed to control particle size distribution. Accurate classification improves grinding efficiency and enhances gold leaching performance.

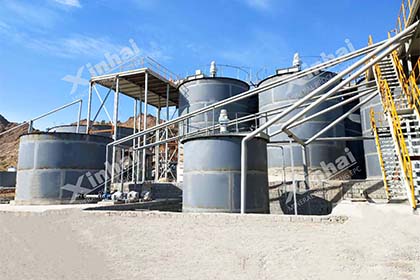

1. Cyanide Leaching Tanks

Leaching tanks are the core equipment in a gold leaching plant. Agitated cyanide tanks allow dissolved gold to separate from ore particles through chemical reactions.

Modern leaching systems are equipped with mixers, air blowers, and automatic dosing systems. These features improve leaching efficiency and stabilize gold recovery rates.

2. Carbon Adsorption and Desorption Systems

Activated carbon adsorption systems are used to capture dissolved gold from cyanide slurry. Carbon-in-pulp and carbon-in-leach systems are commonly applied in small scale operations.

Desorption and electro-winning equipment are later used to recover gold from loaded carbon. This process helps produce high-purity gold while reducing metal losses.

3. Thickening and Tailings Equipment

Thickeners are used to separate solids from liquid slurry before tailings disposal or water recycling. Proper thickening reduces water consumption and improves overall plant efficiency.

Tailings pumps and storage systems are also important for environmental management. Effective tailings handling helps mining operations meet modern environmental standards.

1. Pumps and Slurry Transportation Systems

Slurry pumps are essential for transporting ore pulp between different processing stages. Reliable pumping systems ensure continuous plant operation and stable material flow.

Pipelines, valves, and flow control systems must be properly selected according to slurry density and processing capacity. Good system design reduces maintenance and energy consumption.

2. Reagent Dosing and Control Equipment

Chemical reagent systems are critical in gold leaching plants. Cyanide dosing units, lime preparation systems, and pH control equipment help maintain optimal leaching conditions.

Automatic process control systems improve reagent accuracy and reduce chemical waste. This helps increase gold recovery while lowering operating costs.

3. Power Supply and Water Recycling Systems

Stable power supply systems are essential for small scale gold plant operation. Generators, transformers, and electrical control panels support continuous production activities.

Water recycling systems help reduce fresh water consumption and minimize environmental impact. Efficient water management is increasingly important for sustainable gold processing operations.

A small scale gold leaching plant requires a complete set of crushing, grinding, leaching, adsorption, and auxiliary equipment to achieve efficient gold recovery. Proper equipment selection directly affects plant productivity, operating costs, and environmental performance.

Modern small scale gold processing plants focus on automation, energy efficiency, and optimized recovery systems. With suitable plant design and reliable equipment, mining companies can improve gold extraction efficiency and maximize long-term profitability.
