Step-by-Step Guide to Ilmenite Processing

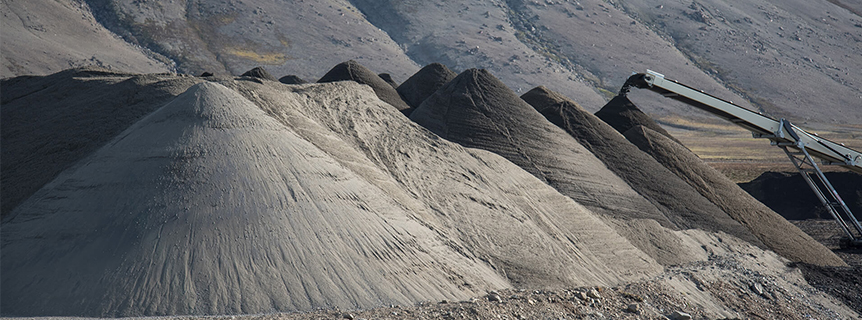

ilmenite mine

Ilmenite, a mineral rich in titanium, is one of the primary sources for producing titanium dioxide (TiO₂), which is widely used in paints, coatings, plastics, and even cosmetics. This step-by-step guide outlines the entire process of ilmenite processing, from extraction to the production of high-quality titanium products.

What is Ilmenite?

Ilmenite (FeTiO₃) is a black, iron-titanium oxide mineral that is predominantly found in beach sands or as part of heavy mineral deposits. It's a crucial source of titanium, and its extraction and processing are essential for producing titanium dioxide and titanium metal for various industrial applications.

Ilmenite ore is typically extracted through open-pit mining methods or dredging from beach sands. The ore is found in heavy mineral sands, often alongside other minerals such as rutile and zircon.

Open-Pit Mining: This method involves removing the overburden (surface soil) to expose the ilmenite-rich ore beneath. The ore is then extracted using large excavators and trucks.

Dredging: For deposits located near water bodies, dredging is used to collect the mineral sands from the seabed.

Once the ilmenite ore is mined, the next step is to reduce it into smaller particles through crushing and grinding. This makes it easier to separate ilmenite from other minerals present in the ore.

Crushing: The extracted ore is fed into crushers where it is broken into smaller chunks.

Grinding: After crushing, the ore is ground into a fine powder to increase the surface area for the next separation processes.

Beneficiation refers to the process of separating ilmenite from waste materials or other minerals present in the ore. This is typically done using physical separation methods, such as gravity separation, magnetic separation, and flotation.

Gravity Separation: This technique relies on differences in mineral densities. The heavier ilmenite particles settle faster, allowing them to be separated from lighter gangue materials.

Magnetic Separation: Ilmenite is magnetic, so it can be separated from non-magnetic minerals using a magnetic separator.

Flotation: Sometimes, flotation is used to separate ilmenite from other minerals by altering the surface properties of the particles, causing them to adhere to bubbles and rise to the surface.

Once ilmenite is concentrated, it undergoes a high-temperature smelting process to produce titanium slag and pig iron. This is usually done in a furnace where the ilmenite is mixed with carbon sources (like coal) and heated to extremely high temperatures (around 1,700°C).

Ilmenite Smelting: In the furnace, ilmenite is reduced to titanium slag and iron. The titanium slag is then separated from the molten iron.

Pig Iron Production: The by-product, pig iron, is often used in steel production or discarded as waste.

Titanium slag from the smelting process can then be refined further to produce titanium dioxide (TiO₂), a white pigment widely used in paints, coatings, plastics, and paper. The two main methods for producing titanium dioxide from titanium slag are:

Chloride Process: The titanium slag is reacted with chlorine gas to produce titanium tetrachloride (TiCl₄), which is then purified and converted into TiO₂ through a series of chemical reactions. This process is efficient for high-quality titanium dioxide production.

Sulfate Process: In this method, the titanium slag is treated with sulfuric acid to produce titanium sulfate, which is then converted into titanium dioxide. This method is more commonly used for producing lower-grade titanium dioxide.

For the production of titanium metal, titanium dioxide must be further reduced to pure titanium. This is typically achieved through the Kroll Process.

Kroll Process: In this process, titanium tetrachloride (TiCl₄), obtained from the chloride method, is reacted with magnesium at high temperatures to produce titanium metal and magnesium chloride. The titanium metal is then purified, alloyed, and processed for use in aerospace, medical implants, and other high-performance applications.

Ilmenite processing, like other mineral extraction processes, generates waste and has an environmental impact. Key environmental concerns include:

Tailings Disposal: The waste materials left after beneficiation and smelting need to be managed properly to prevent contamination of soil and water.

Air and Water Pollution: Emissions from smelting and chemical processes need to be controlled to minimize air and water pollution.

Recycling: Efforts are being made to recycle titanium and minimize the environmental footprint of the industry.

The end products of ilmenite processing include:

Titanium Dioxide (TiO₂): Used as a white pigment in a wide range of products, including paints, coatings, plastics, paper, and cosmetics.

Titanium Metal: A lightweight, high-strength metal used in aerospace, medical implants, military applications, and high-end sports equipment.

Ilmenite processing is a complex and multi-step procedure that transforms raw ilmenite ore into valuable products like titanium dioxide and titanium metal. Each stage—from mining and beneficiation to smelting, refining, and waste management—plays a crucial role in ensuring that the final products meet industry standards and are produced efficiently.

By understanding the processes involved in ilmenite processing, industries can optimize their operations, minimize environmental impact, and ensure the sustainability of titanium resources for the future.
