Extraction Process of Copper Sulfide Ore: A Comprehensive Overview

LauraLaura Apr 24, 2023Apr 24, 2023 501501
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

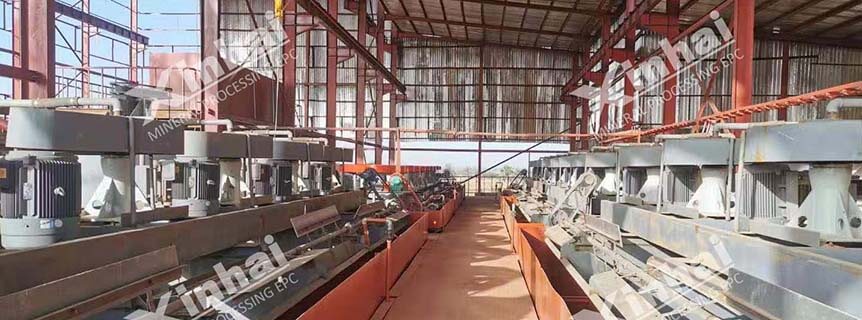

Nigeria Anka 1000tpd copper and silver ore processing plant.jpg

( Nigeria Anka 1000tpd copper and silver ore processing plant )

Copper sulfide ore is a type of mineral that contains copper sulfide as the main component. It is one of the most important sources of copper in the world. The extraction process of copper sulfide ore is a complex and multi-stage process that involves various stages such as crushing, grinding, flotation, and smelting. In this article, we will provide a comprehensive guide to the copper sulfide flotation process. Let's start it!

The crushing process of copper sulfide ore involves several stages. The first stage is the primary crushing stage, where the ore is crushed into smaller pieces using a jaw crusher or gyratory crusher. This stage helps to reduce the size of the ore and prepare it for the next stage of the process.

The second stage is the secondary crushing stage, where the ore is further crushed using a cone crusher or impact crusher. This stage helps to further reduce the size of the ore and prepare it for the final stage of the process.

The final stage is the tertiary crushing stage, where the ore is crushed into even smaller pieces using a vertical shaft impact crusher or high-pressure grinding rolls. This stage helps to ensure that the ore is finely ground and ready for the next stage of the process.

Overall, the crushing process of copper sulfide ore is an important step in the extraction of copper. It helps to break down the ore into smaller pieces, making it easier to extract the copper and prepare it for use in various industries. By understanding the crushing process of copper sulfide ore, we can ensure that we are extracting this valuable resource in the most efficient and effective way possible.

02 Copper Sulfide Ore Grinding Process

Back

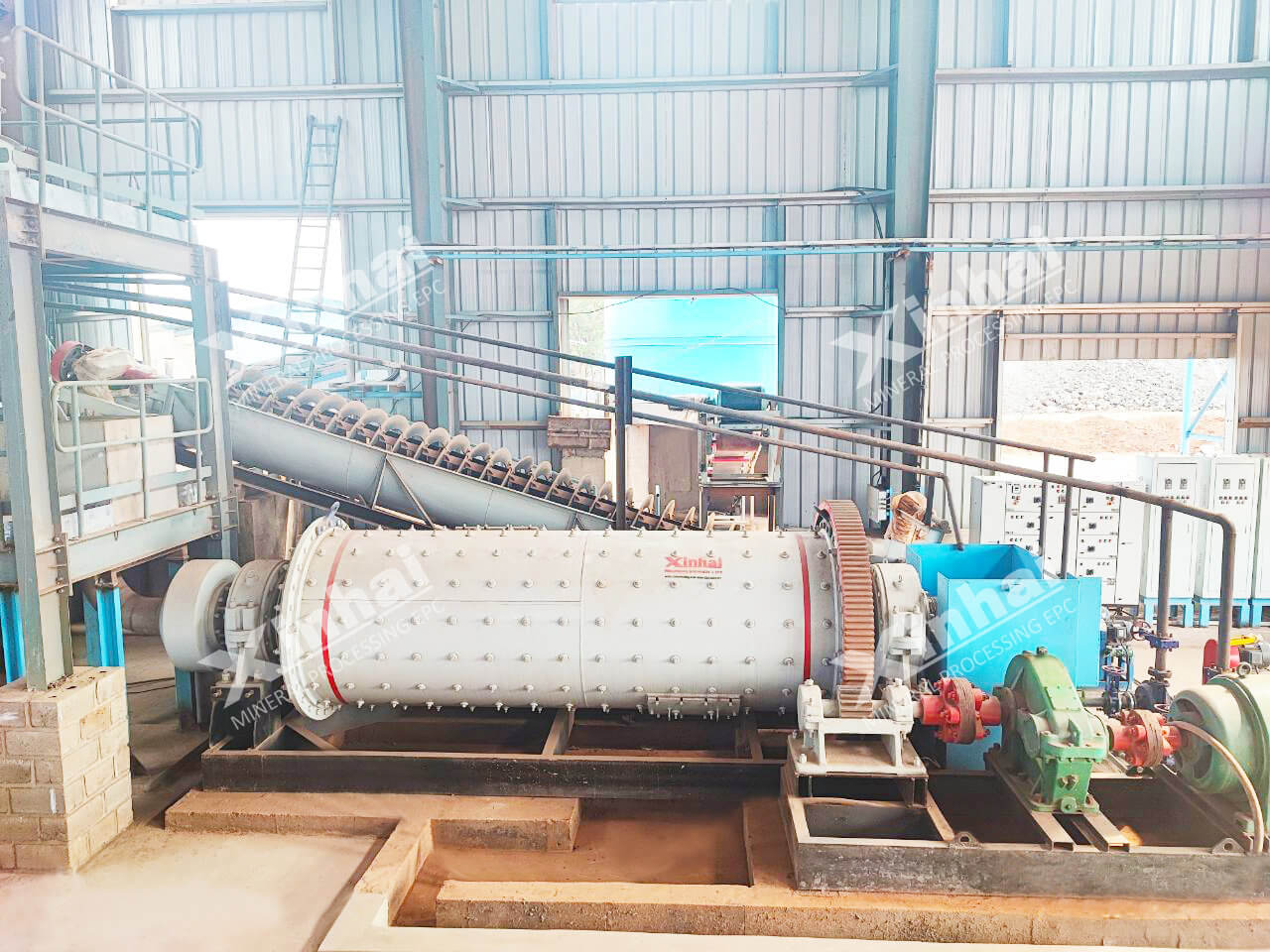

Grinding machines - Gold 100tpd copper-cobalt ore flotation plant in Congo.jpg

( Grinding machines - Gold 100tpd copper-cobalt ore flotation plant in Congo )

Firstly, the copper sulfide ore is crushed by a jaw crusher to a reasonable size. Then, it is sent to the ball mill for grinding. The ore is ground to a fine powder in the ball mill, and the copper minerals are separated from the gangue minerals by flotation. The flotation process involves adding reagents to the ground ore slurry, which selectively attach to the copper minerals and float them to the surface of the flotation cell.

In the grinding process of copper sulfide ore, the key is to achieve the optimal grinding fineness. The optimal grinding fineness can maximize the recovery of copper minerals and minimize the consumption of grinding media and energy. Therefore, the grinding process of copper sulfide ore should be optimized according to the ore properties, such as ore hardness, mineral composition, and liberation size.

In addition, the grinding process of copper sulfide ore is affected by many factors, such as the type of grinding media, the grinding time, the pH value of the slurry, and the flotation reagents. Therefore, it is necessary to conduct comprehensive experiments to optimize the grinding process and improve the copper recovery rate.

In conclusion, the grinding process of copper sulfide ore is a complex and important process for achieving high copper recovery rate. The optimal grinding fineness, grinding media, grinding time, pH value of the slurry, and flotation reagents should be carefully optimized to improve the grinding efficiency and copper recovery rate.

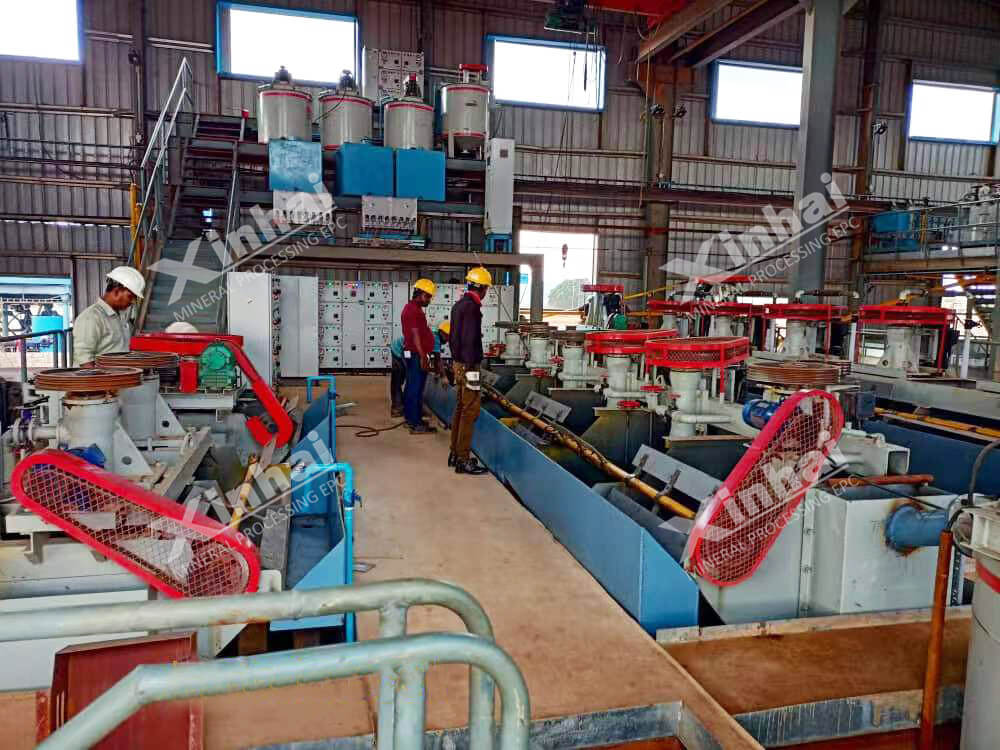

Flotation machines - Gold 100tpd copper-cobalt ore flotation plant in Congo.jpg

( Flotation machines - Gold 100tpd copper-cobalt ore flotation plant in Congo )

Copper sulfide flotation process is a widely used method for extracting copper from its ore. This process involves the use of chemicals and water to separate copper minerals from other materials in the ore. The process is based on the principle that copper sulfide minerals are hydrophobic, meaning they repel water, while the other minerals in the ore are hydrophilic, meaning they are attracted to water.

The copper sulfide flotation process is typically carried out in a series of stages, each of which involves the use of different chemicals and equipment. The first stage involves crushing and grinding the ore to a fine powder. This powder is then mixed with water and chemicals, including collectors and frothers, to create a slurry.

The slurry is then fed into a series of flotation cells, where air is pumped into the mixture. The air bubbles attach to the hydrophobic copper sulfide minerals, causing them to rise to the surface of the mixture. This creates a froth layer, which is then skimmed off and sent to a filtering process.

The filtered concentrate is then dried and processed to extract the copper. This process typically involves smelting the concentrate, which involves heating it to high temperatures in the presence of oxygen. The copper is then extracted from the molten material and refined to produce pure copper.

In conclusion, the copper sulfide flotation process is a complex and important process for extracting copper from its ore. This process involves the use of chemicals and equipment to separate copper minerals from other materials in the ore. While the process is complex, it is an essential step in the production of copper and is used in mines around the world.

04 Copper Sulfide Ore Smelting Process

Back

The smelting process of copper sulfide ore can be divided into two stages: roasting and smelting. Roasting is the process of heating the copper sulfide ore in the presence of air to remove sulfur and other impurities, while smelting is the process of melting the roasted ore to obtain copper metal.

The roasting process can be carried out in a variety of ways, including traditional hearth roasting, fluidized bed roasting, and flash roasting. Each method has its advantages and disadvantages, and the choice of method depends on the specific characteristics of the ore and the desired product quality.

Once the ore has been roasted, it is ready for smelting. The smelting process involves melting the roasted ore in a furnace at high temperatures, typically between 1200 and 1300°C. The molten copper is then poured into molds and cooled to form copper ingots.

In addition to the traditional smelting process, modern technologies such as flash smelting and continuous smelting have been developed to improve the efficiency and reduce the environmental impact of the smelting process.

05To Sum Up

Back

The extraction process of copper sulfide ore is a complex process that involves several stages. The process involves crushing, grinding, flotation, and smelting. Each stage is important in the overall extraction process and requires careful attention to detail. With proper planning and execution, the extraction process of copper sulfide ore can be carried out efficiently and effectively.
