Everything You Need to Know about Agitation Tank for Mineral Processing

StarStar Jul 10, 2022Jul 10, 2022 27832783
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

agitation tanks for mineral processing.jpg

(Agitation tanks for mineral processing)

01 What is agitation tank?

Back

Agitation tank is a machine used to fully mix the pulp, chemicals and water, or to mix multiple chemicals. It is widely used in mixing operations in metal and non-metal beneficiation plant, mostly used in ore flotation plant.

02 What are the types of agitation tanks?

Back

According to different uses and structures, mixing tank can be divided into 8 types: ordinary agitation tanks, high-efficiency agitation tanks, high-temperature agitation tanks, pulp lifting agitation tanks, high-concentration pulp agitation tanks, cone-bottom agitation tanks, chemical agitation tanks and pickling agitation tanks. Let's see each type of agitation tank introduction below.

(1)  Ordinary agitation tank

The ordinary agitation tank is used for the stirring of the pulp before the flotation operation.

Ordinary agitation tank 3D model.png

(Ordinary agitation tank)

Working principle

The impeller rotates in the tank to drive the ore pulp to flow, and under the action of the circulating cylinder, multiple small cycles are formed in the tank, so as to realize the uniform stirring of the ore slurry.

Equipment features

The barrel can be lined with wear-resistant and anti-corrosion rubber; the impeller has high linear speed and strong slurry stirring ability.

Technical parameter

technical parameter of ordinary agitation tank.png

(2) High-efficiency agitation tank

The high-efficiency agitation tank is used for the stirring of the pulp before the flotation operation. It is an upgraded version of ordinary agitation, which can improve the recovery rate by 1-3%.

High-efficiency agitation tank 3D model.jpg

(High-efficiency agitation tank)

Working principle

The impeller rotates in the tank to drive the ore pulp to flow, so that the ore particles and the agent are fully contacted.

Equipment features

It is an upgraded version of the ordinary agitation tank, with large impeller diameter and strong mixing capacity. It accelerates the pumping ability and makes the flotation chemical and ore circulation ability stronger.

Technical parameter

technical parameter of High-efficiency agitation tank.png

 (3) High temperature agitation tank

The high temperature agitation tank is suitable for the slurry mixing operation that requires heating and heat preservation. It has a special high temperature resistant inner layer, and the interlayer is filled with asbestos heat preservation material.

Working principle

The impeller rotates in the tank to drive the ore pulp to flow, so that the ore particles and the agent are fully contacted.

Equipment features

The inner layer is lined with high temperature resistance, and the interlayer is filled with asbestos insulation material, which can be heated and stirred.

Technical parameter

technical parameter of High temperature agitation tank.png

(4) Slurry lifting and agitation tank

The slurry lifting agitation tank has both a agitation function and a lifting function. This equipment can be selected when the height difference of the pulp is insufficient, or the difference is too small to be transported by a pump.

Slurry lifting and agitation tank 3D model.png

(Slurry lifting and agitation tank)

Working principle

Negative pressure is generated in the center of the impeller through the high-speed rotation of the centrifugal impeller, and the external slurry is sucked into the tank through the cylinder seat at the top of the impeller, and the liquid level in the tank is continuously raised. The ability to enhance is achieved.

Equipment features

The lifting height can be determined according to customer requirements, generally up to 1.2m.

Technical parameter

technical parameter of Slurry lifting and agitation tank.png.png

 (5) High-concentration pulp agitation tank

The high-concentration pulp mixing tank is used for the mixing of high-concentration pulp such as mortar backfilling or underflow buffering of thickeners.

High-concentration pulp agitation tank 3D model.jpg

(High-concentration pulp agitation tank)

Working principle

The mixing shaft adopts the structure of upper and lower double impellers. When rotating at high speed, the upper impeller presses down the pulp, the lower impeller lifts the pulp upward, and the two pulps collide in the middle, and then spread to the surrounding, so that the pulp with higher concentration forms a large loop in the whole tank, and makes the pulp inside the tank. The upward water flow is generated, which greatly reduces the sedimentation speed of the pulp and improves the stirring capacity to adapt to the stirring of the high-concentration pulp.

Equipment features

wear-resistant rubber plate impellers are used to increase wear resistance. The diameter of the impeller and the diameter of the circulating cylinder should be increased, and the concentration of the stirring slurry is as high as 75%.

Technical parameter

technical parameter of High-concentration pulp agitation tank.png

 (6) Conical bottom agitation tank

The conical bottom agitation tank is used for mixing and agitation the pulp and chemicals before flotation.

Conical bottom agitation tank 3D model.jpg

(Conical bottom agitation tank)

Working principle

The impeller rotates in the tank to drive the flow of the pulp to achieve full mixing of the pulp.

Equipment features

The barrel can be lined with wear-resistant and anti-corrosion rubber; the discharge capacity is high.

Technical parameter

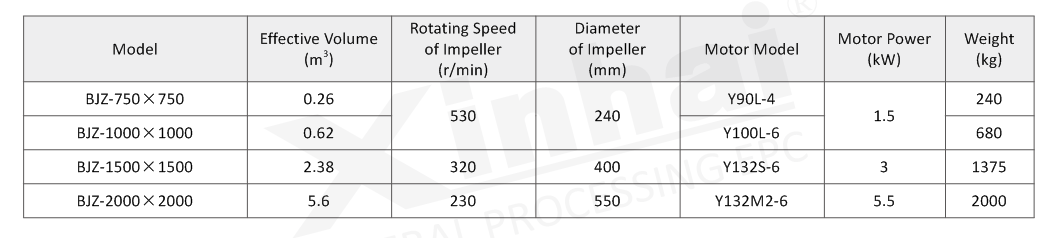

technical parameter of Conical bottom agitation tank.png

 (7) Chemical agitation tank

The reagent agitation tank is used for the mixing and agitation of the flotation reagent in the flotation plant.

Chemical agitation tank 3D model.png

(Chemical agitation tank)

Working principle

The liquid flow is driven by the rotation of the impeller in the tank, so that the medicine and the liquid are fully integrated.

Equipment features

The barrel can be lined with wear-resistant and anti-corrosion rubber. Strong ability to mix liquids and medicines.

Technical parameter

technical parameter of Chemical agitation tank.png

 (8) Pickling agitation tank

The pickling agitation tank is used in the cyanidation plant of gold and silver ore, and is used in the pickling operation of carbon after desorption and electrolysis.

Pickling agitation tank 3D model.jpg

(Pickling agitation tank)

Working principle

The impeller rotates in the tank to drive the acid liquid to circulate, so that the carbon in the tank can be fully cleaned.

Equipment features

stainless steel or acid-resistant and wear-resistant rubber.

Technical parameter

technical parameter of Pickling agitation tank.png

03 How does structure of agitation tank affect slurry concentration?

Back

The impeller speed and its position in the agitation tank have a certain influence on the slurry concentration. In the vertical direction, the upper and lower regions of the impeller form two vertical circulations respectively; in the horizontal direction, a circumferential circulation is formed in the agitation tank. The slurry velocity in the blade area is the largest, and the slurry velocity in the outer area of the impeller is smaller. The stirring speed has a significant effect on the distribution of the slurry concentration in the agitation tank. The test results show that the optimal stirring speed is 70r/min, and the optimal impeller height is 4.77m.

Structure of agitation tank.jpg

(Structure of agitation tank)

Moreover, the different structures of the agitation tanks are suitable for stirring the pulp of different concentrations. For example, the agitation of medium-low concentration ore pulp generally uses a single impeller without a circulating drum after the agitation tank, and the speed of the impeller is relatively low. For the stirring of high-concentration pulp, it is necessary to adopt a circulating cylinder structure or a multi-impeller structure, and the speed of the impeller is relatively high.

04 How to install and debug the agitation tank?

Back

The agitation tank is installed on a stable and reliable foundation, the tank body should be level, and the main shaft should be vertical. After confirming that the installation and adjustment are reliable, the equipment should be tested empty. During the test run of the empty car, carefully observe its stability and listen for abnormalities and noises. The test run is generally not less than 0.5h. After the test, it should be run with clean water, and then put into production.

05 How to maintain the agitation tank?

Back

In actual production, in order to ensure the smooth progress of the mixing operation and prolong the service life of the agitation tank and accessories, the operator should regularly overhaul and maintain the agitation tank. The overhaul and maintenance procedures for the mixing tank are as follows:

(1) Overhaul procedures

The overhaul cycle should be carried out according to a minor repair every 1-3 months, a medium repair every 12 months, and a major repair every 60-120 months.

Minor repair content

  • Check the wear of impeller and cover plate;

  • Replace the scraper shaft and bearing seat;

  • Replace the scraper and scraper shaft;

  • Change the motor bearing oil.

Middle repair content

  • Replace the vertical shaft bearing;

  • Replace the shaft bracket;

  • Replace the impeller cover.

Overhaul content

  • Replace the foam tank and repair the flotation tank;

  • Replace the pipeline gate, etc.

(2) Maintenance procedures

The following maintenance procedures should be carried out every 6 months.

  • Operators and fitters check whether all bearings are proper and well sealed, and change the oil;

  • The mechanic checks the impeller and stator wear;

  • The fitter checks whether the tightness of the belt is appropriate, the wear of the pulley,

  • Workers check whether there is water leakage in each pipeline and gate, and whether the tank body and various components are in good condition;

  • Electric and fitter check whether the motor bearing is in good condition:

  • The electrician cleans the electrical circuits to ensure no leakage, and the electrical appliances are sensitive and reliable;

  • Operators, electricians and fitters should lubricate regularly according to the provisions of the lubrication chart.

06 What is the price of the agitation tank?

Back

Due to the different types and specifications of the mixing tank, the price is also different. The price of agitation tanks for mining is generally 808$~29,400$. High-efficiency mixing tanks and high-concentration slurry mixing tanks are more expensive than other types of agitation tank.

07 Application cases of agitation tanks in mines

Back

(1) China Shandong 2,000TPD molybdenum-tungsten processing plant

The project adopts a two-stage grinding process, and the second stage adopts closed-circuit grinding. Replace the ordinary classifier with a cyclone. The overflow of the cyclone flows to the chemical agitation tank. After the slurry is fully mixed with the prepared chemical in the agitation tank, it enters the flotation process, and the flotation of molybdenite is prioritized. Tailings continue to select tungsten.

Agitation tanks used in China Shandong 2,000TPD molybdenum-tungsten flotation plant.jpg

(2) Tibet 1,500TPD lead-zinc mine tailings dry discharge project

In this project, the stirred tank is mainly used for tailings treatment. The tailings dehydration workshop uses activated carbon powder for backwater purification and drug removal. Activated carbon powder is prepared with a chemical stirring tank and added with a cup-type dosing machine; sodium sulfide is used to treat copper ions in the return water, and sodium sulfide is prepared in a chemical stirring tank. When adding, it is controlled by a valve, and flows to the inlet of the return tank, and enters the return tank. After the backwater is evenly moderated, it enters the pool together.

Agitation tanks used in Tibet 1,500TPD lead-zinc tailings dry discharge project.jpg

 (3) Uganda 720TPD phosphate flotation plant

The project adopts phosphate rock flotation process. The ball mill, slurry pump and classification cyclone form a closed-circuit grinding system. The overflow of the cyclone flows to the high-efficiency agitation tank, and the slurry is added and fully mixed before entering the flotation process. The flotation process is a positive flotation process with one roughing and two concentration.

Uganda 720TPD phosphate flotation plant.jpg

 (4) Myanmar 500TPD copper flotation plant

After the copper ore of this project is crushed in two stages and one closed circuit, it is fed into the grid type ball mill-high weir type spiral classifier operation system. The material with unqualified particle size is returned to the ball mill for regrinding. The pulp that fully stirred by high-efficiency agitation tank is subjected to a flotation process of one roughing + two beneficiation + three sweeps to obtain qualified concentrate.

Myanmar 500TPD copper flotation plant.jpg

(5) Morocco 500TPD silver processing plant

The project is to build a new pulp mixing system on the basis of the original dressing plant. The dressing plant adopts the method of loading ore by grab bucket, and the slurry is fed into the high-concentration agitation tank for stirring, and then enters the grinding and grading system. After the cyclone overflow is concentrated by the thickener, it goes to the existing leaching system, and the leaching time is more than 60 hours. The leaching pulp is washed in 5 stages, and the zinc powder is replaced with the precious liquid for smelting. The tailings are sent to the tailings pond after treatment.

Agitation Tanks used in Morocco 500TPD silver processing plant.jpg

(6) Vietnam 120TPD gold flotation plant

The project adopts a closed-circuit grinding-flotation process (one roughing, two concentrating and three sweeping). The ore is fed by a belt conveyor into a closed-circuit grinding process consisting of a grid-type ball mill and a high-weir-type spiral classifier to obtain ores with qualified particle size. The materials with qualified particle size are then self-flowed to the high-efficiency agitation tank for dosing and slurry mixing through the classifier.

Agitation tanks used in Vietnam 120TPD gold flotation plant.jpg

08To wrap up

Back

The above is an introduction to various aspects of  agitation tank for mineral processing. As an auxiliary equipment, the mixing tank is one of the essential equipment in the concentrator. If you want agitation tanks or have other questions about the machine, please leave us a message. We will contact you as soon as possible.
