Step-by-Step Guide to Tin Mining and Processing

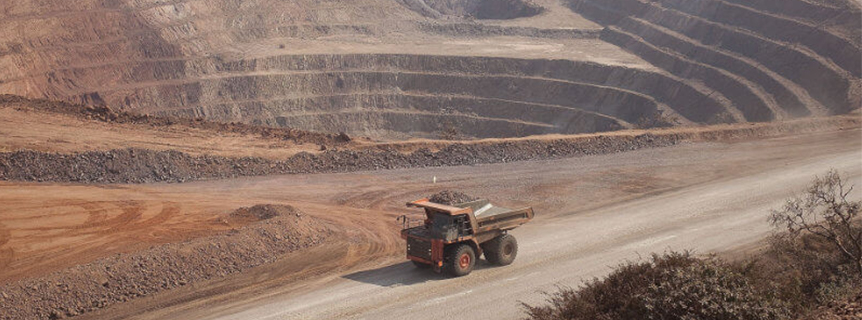

( tin mine )

Tin mining is a significant part of the global mining industry, supplying the essential metal used in a wide variety of products, including electronics, packaging, and soldering. The process of extracting tin from ore and processing it into a usable form involves several stages, each requiring specialized techniques and equipment. In this step-by-step guide, we'll walk you through the entire tin mining and processing process, from exploration to refining.

What is Tin Mining?

Tin mining refers to the process of extracting tin (Sn), a silvery-white metal that is often found in the form of cassiterite (SnO2), the primary ore mineral. Cassiterite is typically found in alluvial deposits or hard rock deposits. Tin has been used for thousands of years due to its unique properties, such as corrosion resistance, making it essential in modern manufacturing processes.

The first stage in tin mining is prospecting and exploration. This phase involves locating tin deposits and determining their viability for mining. Exploration activities generally include:

Geological Surveys: Geologists use geological maps and data to identify areas with high potential for tin deposits.

Soil and Rock Sampling: Samples are taken from the ground to analyze their mineral content. This helps identify areas with a higher concentration of tin ore.

Drilling: Core drilling is performed to extract samples from deeper underground layers, confirming the presence and extent of the tin deposit.

Once a tin deposit is confirmed, mining methods are chosen based on the location and type of deposit. The two most common methods used for tin mining are alluvial mining and hard rock mining.

1. Alluvial Tin Mining

Alluvial mining is the extraction of tin from deposits that have been naturally eroded and transported by water. These deposits are typically found in riverbeds, streambeds, or floodplains. The mining process for alluvial tin involves:

Excavating: Miners use excavators or dredges to remove the overburden (topsoil) and access the tin-bearing sediment below.

Washing: The excavated material is washed with water to separate lighter materials from heavier ones. The cassiterite particles, being denser, settle at the bottom.

Separation: Gravity separation techniques such as sluice boxes or jigs are used to separate the tin ore from waste material (tailings).

2. Hard Rock Tin Mining

Hard rock mining involves extracting tin ore from deep underground deposits. This method is used when the tin is located within solid rock formations, typically in the form of veins. The process for hard rock tin mining includes:

Drilling and Blasting: Miners drill holes into the rock and use explosives to break it up into smaller, more manageable pieces.

Ore Extraction: Once the rock is fractured, ore is extracted using loaders and haul trucks.

Crushing and Grinding: The extracted ore is crushed into smaller pieces and then ground into a fine powder to release the tin minerals.

After the tin ore has been extracted, it undergoes various processing steps to separate the tin from other minerals and impurities. The main goal of processing is to concentrate the tin content to increase its value and purity.

1. Crushing and Grinding

Crushing: The first step in ore processing is crushing the ore into smaller pieces, which are easier to handle and process.

Grinding: The crushed ore is then ground into a fine powder, typically in ball mills or other grinding machines, to increase the surface area and facilitate further processing.

2. Concentration

The next step is to concentrate the tin from the ore. This is done using methods like gravity separation and flotation.

Gravity Separation: Tin is a dense metal, so gravity separation techniques are used to separate heavier tin particles from lighter gangue materials. Equipment like jigs, shaking tables, or sluice boxes are commonly used.

Flotation: In some cases, flotation methods may be employed to separate tin from other minerals based on their surface properties. Air bubbles are used to selectively float tin particles to the surface for collection.

3. Smelting

After the tin has been concentrated, it is ready for smelting. Smelting is the process of heating the concentrated ore in a furnace to separate the tin from the remaining impurities.

Melting the Tin: The concentrated tin is melted at high temperatures (about 250°C) in a furnace, often in the presence of fluxes that help remove impurities such as sulfur, arsenic, and iron.

Refining: The molten tin is then refined to remove any remaining impurities. This is done using electrolytic refining or chemical refining methods, ensuring that the final product is of high purity.

Once the tin has been extracted and refined, it is often alloyed with other metals to create tin alloys. These alloys have various applications in industries such as electronics, automotive, and soldering. Some common tin alloys include:

Bronze: An alloy of tin and copper, used in machinery, tools, and coins.

Solder: An alloy of tin and lead or other metals, used in electronics and plumbing.

Pewter: A tin-based alloy used in the production of household items and jewelry.

1. Environmental Impacts

Tin mining, like all forms of mining, can have significant environmental impacts. Some of the main environmental issues associated with tin mining include:

Water Pollution: The washing and processing of tin ore can result in water pollution, as chemicals and fine particulate matter are released into local water sources.

Deforestation: In some cases, mining operations clear large areas of forest, leading to habitat destruction and biodiversity loss.

Waste Disposal: Tailings and waste materials from the mining and processing stages need to be carefully managed to prevent contamination of surrounding ecosystems.

2. Sustainable Practices

To mitigate these impacts, modern tin mining operations are adopting more sustainable practices, such as:

Water Recycling: Implementing systems to recycle water used in processing.

Ecosystem Restoration: Planting trees and restoring habitats after mining activities have ceased.

Cleaner Technologies: Utilizing eco-friendly processing technologies that minimize waste and energy consumption.

Tin mining and processing is a multi-step process that involves exploration, extraction, concentration, smelting, and refining. Whether using alluvial or hard rock mining methods, the goal is always to efficiently and sustainably extract tin while minimizing environmental impact. As demand for tin continues to rise due to its critical role in electronics and other industries, ongoing innovations in mining and processing technologies will help ensure that this valuable resource is available for future generations.
