Antimony Processing Equipment: Essential Machines for Efficient Ore Beneficiation

antimony-ore-beneficiation

This article explores the key machines used in antimony ore beneficiation, covering every stage from crushing to concentration. By understanding the function of each piece of equipment, mining operators can select the right technology to maximize recovery while minimizing costs.

The first step in processing is reducing ore size. Commonly used crushers include:

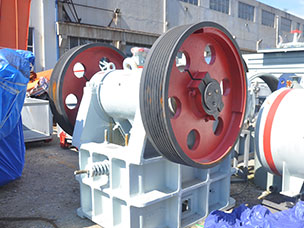

• Jaw crushers: For coarse crushing of run-of-mine ore.

• Cone crushers: For secondary crushing, producing uniform particle sizes.

• Impact crushers: Useful when selective breakage is needed.

To liberate stibnite from gangue, grinding is essential.

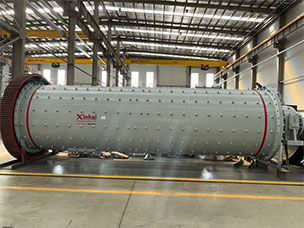

• Ball mills: Most widely used for fine grinding before flotation.

• Rod mills: Preferred for producing uniform particle size in gravity separation circuits.

• Vertical mills: Increasingly used for energy-efficient fine grinding.

Gravity separation is suitable for coarse stibnite particles and simple ores. Key machines include:

• Shaking Tables: Effective for concentrating coarse and medium-sized stibnite.

• Jigs: Efficient for larger particle recovery and pre-concentration.

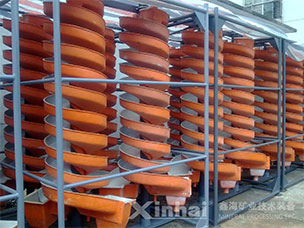

• Spiral Concentrators: Used for rough separation of heavy minerals.

• Dense Media Separators: For ores with distinct density contrasts.

Advantages: low cost, no chemicals, environmentally friendly.
Limitations: less effective for fine-grained or complex ores.

For fine-grained and complex ores, flotation is the dominant method. Equipment used includes:

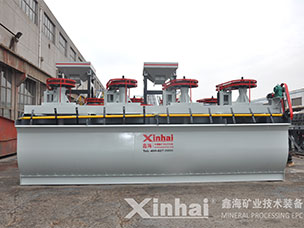

• Flotation Cells: Mechanical or pneumatic, where air bubbles carry stibnite to the froth layer.

• Conditioning Tanks: For reagent mixing and pulp conditioning.

• Reagent Dosing Systems: Ensure precise addition of collectors, frothers, and depressants.

Flotation can achieve high recovery rates (>85%) and concentrate grades suitable for metallurgy, making it indispensable for most stibnite ores.

In addition to core beneficiation machines, several auxiliary systems improve process efficiency:

• Thickeners: For water recovery and pulp density control.

• Filtration Units: For concentrate dewatering.

• Classification Equipment (Hydrocyclones, Screens): To control particle size distribution.

• Pumps and Conveyors: For ore transport between stages.

These systems ensure stable operation, reduce waste, and optimize overall plant performance.

In modern plants, a hybrid approach is often applied:

1. Gravity pre-concentration using jigs or shaking tables.

2. Flotation of fine fractions to maximize recovery.

This reduces reagent consumption, lowers costs, and improves the final concentrate quality.

China – Large-Scale Antimony Plant

A plant in Hunan Province employs a combination of jaw crushers, ball mills, shaking tables, and flotation cells. With this setup, recovery exceeds 90%, and concentrate grade reaches smelter requirements.

Bolivia – Small-Scale Gravity-Based Processing

Small operators often rely on crushers, rod mills, and shaking tables. While recovery rates are lower (around 70%), equipment costs are affordable and easy to maintain in remote locations.

When choosing equipment for antimony processing, consider:

• Ore characteristics (sulphide, oxide, mixed).

• Particle size requirement (coarse vs. fine liberation).

• Scale of operation (small vs. industrial).

• Budget constraints (CAPEX and OPEX).

• Environmental regulations (chemical usage in flotation).

• Availability of water and power in the processing site.

1. Automation and Digital Control: Real-time monitoring of grinding and flotation circuits.

2. Eco-Friendly Flotation Reagents: Reducing environmental impact.

3. High-Efficiency Mills: Lowering energy consumption.

4. Ore Sorting Technologies: Using sensors to reject waste before grinding.

5. Modular Plants: Prefabricated units for remote mining sites.

These innovations promise to improve recovery rates, lower costs, and enhance sustainability in antimony beneficiation.

Efficient antimony processing depends on the right combination of equipment.

• Crushing and grinding machines prepare ore for further treatment.

• Gravity separation units provide low-cost solutions for coarse stibnite.

• Flotation equipment ensures high recovery for fine and complex ores.

• Auxiliary systems maintain smooth operations and concentrate quality.

For most operations, a hybrid setup of gravity + flotation offers the best balance of efficiency, cost, and recovery. Careful equipment selection, supported by ore testing and pilot studies, remains the key to successful antimony ore beneficiation.
