Graphite Ore Mineral Processing Equipment: A Complete Guide

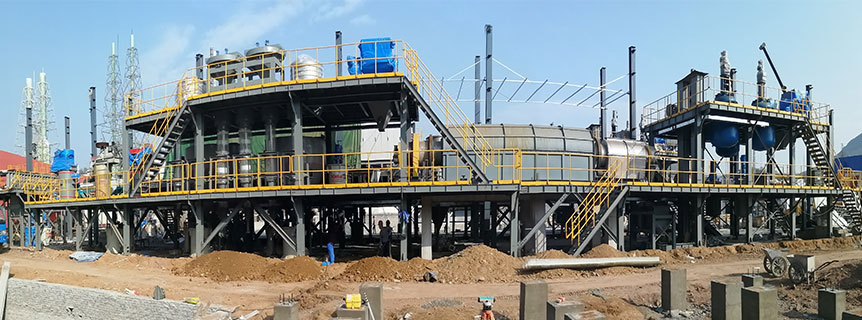

Graphite-ore-dressing-plant

Graphite is a critical mineral with growing demand, driven by its essential role in electric vehicle batteries, lubricants, refractories, and high-tech applications. Efficient graphite ore processing is crucial to achieve high purity levels and meet industrial standards.

This article explores the latest graphite mineral processing equipment, techniques, and technologies used to optimize graphite recovery.

Graphite ore is a naturally occurring form of crystalline carbon. It typically exists in one of three forms:

• Flake graphite (most valuable for battery use)

• Amorphous graphite (used in lubricants, coatings)

• Vein/lump graphite (rare and high-purity)

Raw graphite ore often contains impurities like quartz, mica, iron oxides, and other silicates. Ore beneficiation is required to concentrate the graphite content and remove gangue materials.

1. Crushing and Grinding: Reduces ore to a uniform size; Prevents overgrinding of soft graphite flakes

2. Screening and Classification: Separates fine and coarse particles; Prepares material for flotation

3. Flotation: Most widely used method for flake graphite; Uses reagents to separate hydrophobic graphite from gangue

4. Thickening and Dewatering: Removes water from the graphite slurry; Produces filter cake for drying

5. Drying and Packaging: Final product is dried to below 1% moisture; Ready for downstream applications or refining

1. Jaw Crusher / Hammer Crusher

• Used for primary crushing of large graphite rocks

• Durable and energy-efficient

2. Ball Mill / Rod Mill

• Grinds ore to appropriate size for flotation

• Prevents graphite flake breakage

3. Hydrocyclone / Spiral Classifier

• Classifies materials by size and density

• Improves separation efficiency

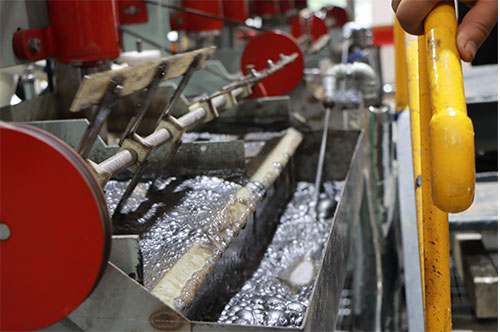

4. Flotation Machine

• Core equipment in graphite beneficiation

• Types: Mechanical agitation, air inflation, or column flotation

5. Thickener

• Increases slurry concentration before dewatering

6. Vacuum Filter / Filter Press

• Removes moisture from concentrate

• Produces high-grade graphite cake

7. Rotary Dryer / Flash Dryer

• Final drying stage to ensure low moisture

For high-end applications, further refining is required:

• Attrition Mills: Remove surface impurities

• Magnetic Separators: Remove iron and magnetic minerals

• Leaching Tanks: Chemical purification using acid washing

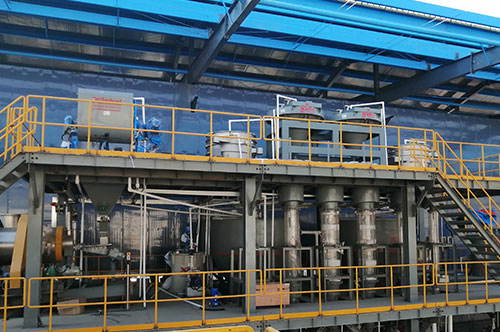

A typical graphite beneficiation plant includes:

1. Crushing section

2. Grinding and classification

3. Flotation circuits (rougher, cleaner, scavenger)

4. Concentrate thickening and drying

5. Tailings management system

Modular plant designs are becoming popular for remote and small-scale mining operations.

High-performance graphite mineral processing equipment is essential for maximizing recovery, purity, and profitability. From crushing to flotation and drying, every stage plays a critical role. As global demand for natural and synthetic graphite grows, upgrading your processing plant with modern, efficient equipment is more important than ever.
